2020 container bolt seal JCBS102
2020 container bolt seal JCBS102
High Security Bolt Seal is a perfect security solution for all kinds of containers, container trucks, doors etc. Featuring galvanized low carbon steel, wrapped with abs, the High Security Bolt Seal is designed in anti-spin construction to keep the locked seal escapes from being rotated out. We provide High Security Bolt Seal in customized specifications at market leading prices.
| bolt container lock for Trailers | |

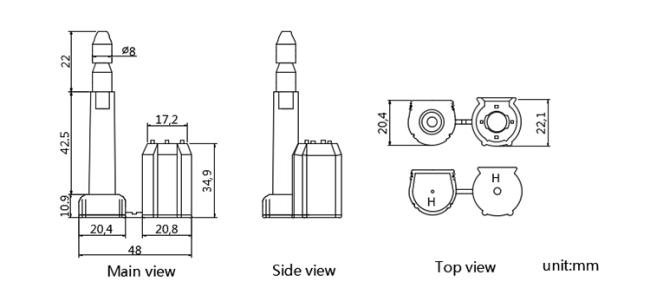

| Specification | 1.8mm diameter steel perch 2.The height of male and female is 75.4mm and 34.9mm separately 3.Pull tight locking mechanism 4.Removing with cable cutters 5.F>15KN 6.Operating Temperature: -40°c to 110°c / -40°F to 230°F
|
| Customization Options : | Printing thermal stamping or laser printing Company logo or name Sequential numbers Barcode is available (will need additional charges) |
Shandong Province Qingyun County Junchuang Lock Industrial CO., LTD is a privately-held enterprise headquartered in Dezhou,Shandong China,Junchuang is one of the leading manufacturer and suppliers of tamper evident, tamper resistant, and high-security loss prevention seals and allied products to meet the growing needs of customers across a wide range of industries,our company products having ISO9001,ISO17712,CTPAT,etc.
Cross Boarder Shipments
High Value Shipments
Trailer Door Latches
Container Door Latches
Installation Instructions
Insert the bolt in the latch hole.
Before locking:
Rotate the locking mechanism and bolt until the matching serial numbers are visible and aligned on the same side.
Align the square (or hexagonal) end of the bolt to fit into the square (hexagonal) hole in the lock. Loosely insert the bolt into the lock to assure proper alignment. Any misalignment will make it more difficult to lock.
Push the bolt into the locking mechanism until it snaps.
Pull on the bolt & lock to confirm the locking mechanism is fully engaged.
A bolt cutter is required to remove the bolt seal. Wear safety glasses when removing.
