OEM 5dB wideband Coaxial Directional Coupler 698MHz-6000MHz
Price:
negotiation
MOQ:
5 pcs
Delivery Time:
2-4weeks
Brand:
Vinncom
Product Description

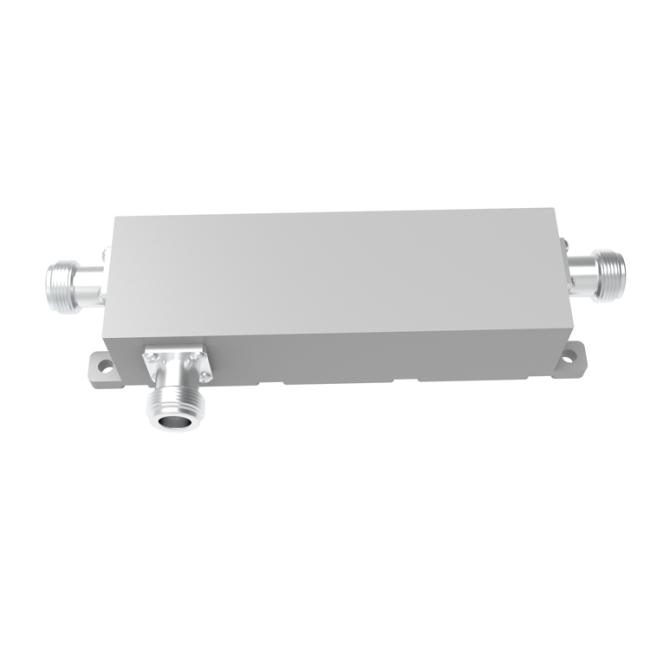

698-6000MHz 5dB N Female RF Directional Coupler
- Wide band
- High isolation
- Portable for installation
|
Part Number |
VN-DC-0760-ON5 |
| Operating Frequency ( MHz ) | 698-6000 |
| Impedance ( Ohm ) | 50 |
| VSWR | ≤1.35 |
| Coupling (dB) | 5 ± 1.4 |
| Insertion Loss (dB) | ≤2.5 |
| Isolation (dB) | ≥21 |
| IM3 (dBc @ 2×43dBm) | -150 |
| Application | Indoor/Outdoor |
| Degree of Protection | IP65 |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Interface | N Female |
| Handling Power (Watt, max) | 300 |
| Peak Power (Watt, max) | 1200 |

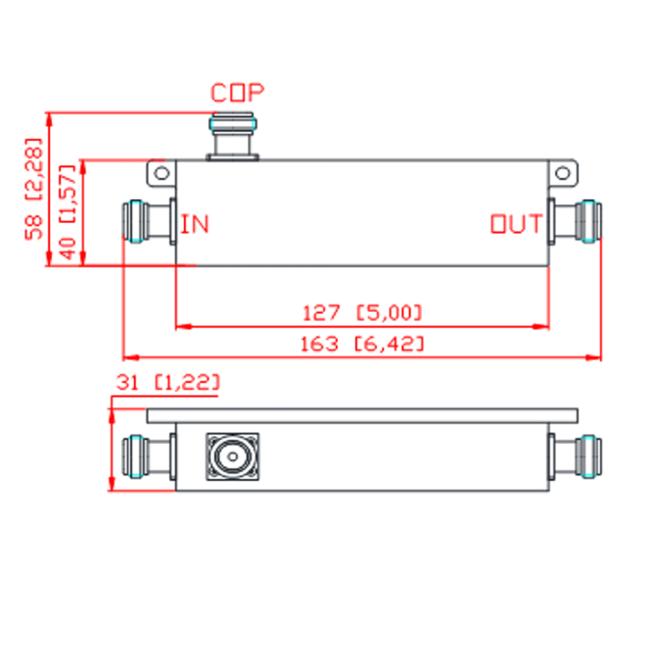

| Dimension (mm)(L×W×H, excl connector) | 127× 40× 31 |
| Net Weight (g) | 450± 5% |
| Packing Dimensions (mm,L×W×H) | 180 × 75 × 30 |
| Packing Carton Size (mm,L×W×H) | 400 × 380 × 170 |
| ROHS Compliance | Yes |
