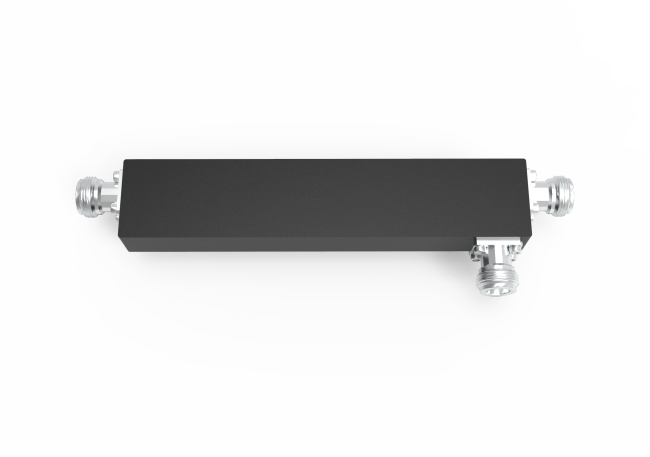

ODM Indoor Hybrid RF Directional Coupler for BTS 350MHz-520MHz
350-520 MHz N Female Directional Coupler VSWR 1.2 PIM -150/-155/-161/-165 Directional Coupler For IBS DAS And BTS
- Good PIM up to -165@43dBm*2
- Good returen loss
- Good VSWR at all ports
| Part Number | VN-DC-035052-INx | |||||
| Operating Frequency ( MHz ) | 350-520 | |||||
| Impedance ( Ohm ) | 50 | |||||
| VSWR | ≤1.2 | |||||
| Coupling (dB) | 5 | 6 | 10 | 15 | 20 | 30 |
| Tolerance (dB) | ± 0.8 | ± 0.8 | ± 1.0 | ± 1.0 | ± 1.0 | ± 1.2 |
| Insertion Loss (dB) | ≤2.0 | ≤1.6 | ≤0.7 | ≤0.3 | ≤0.1 | ≤0.04 |
| Isolation (dB) | ≥25 | ≥26 | ≥30 | ≥35 | ≥40 | ≥50 |
| IM3 (dBc @ 2×43dBm) | -150/-155/-161/-165 | |||||
| Application | Indoor | |||||
| Degree of Protection | IP65 | |||||
| Operating Temperature ( ℃ ) | -40 ~ + 80 | |||||
| Interface | N Female | |||||
| Handling Power (Watt, max) | 300 | |||||
| Peak Power (Watt, max) | 1200 | |||||

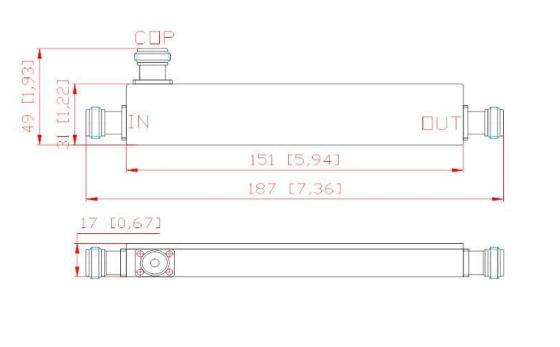

| Dimension (mm)(L×W×H, excl connector) | 151 × 31× 17 | |||||
| ROHS Compliance | Yes | |||||
Rf passive devices are mainly used in base station construction of wireless communication system and indoor power distribution system. Especially in the building of wireless signal distribution and coverage of a wide range of applications, a variety of. Rf passive devices are used to connect or distribute RF signals in base station construction and indoor power distribution projects. Indoor power distribution system is to connect or branch the signals sent by the base station through rf passive equipment, and then distribute them to each coverage point of the antenna through the feeder, so as to achieve good coverage of c indoor wireless signals.
