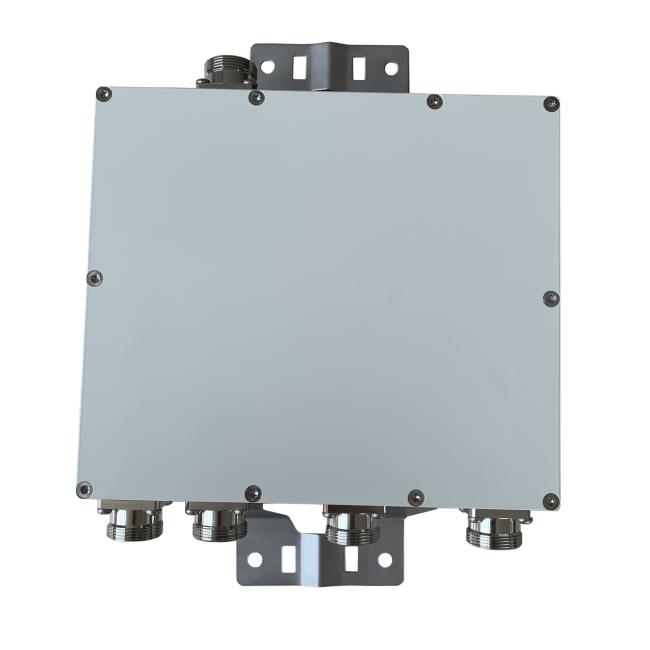

DIN Female Hybrid PIM RF Antenna Combiner 2500-2690MHz 4 To 1 150dBc
Price:
negotiation
MOQ:
5pcs
Delivery Time:
depends on your quantity
Brand:
Vinncom
Product Description
698-960,1710-1880,1920-2170,2500-2690 MHz DIN Female 4 to 1 combiner PIM-150dBc
- Good returen loss
- Good VSWR at all ports
- Portable for installation
| Part Number | VN-CB4X1-0727-OD |
| Operating Frequency ( MHz ) |
698-960,1710-1880, 1920-2170,2500-2690 MHz |
| Insertion loss |
698-960≤0.25 dB 1710-1880≤0.4 dB 1920-2170≤0.4 dB 2500-2690≤0.3dB |
| Return loss | ≥18dB |
| Low&High Band Rejection | ≥50dB |
| Impedance( Ohm ) | 50 |
| Input power | ≤150 W(avg.) |
| Inter modulation | ≤-150 dBc with 2tone × 20W |
| DC/AISG | N/A |
| Lightning protection | 3KA；10/350us pulse |
|
Relative humidity |
0~95% |
|
Application |
Outdoor (IP67) |
| Interface | DIN(Female) |
| Operating Temperature( ℃ ) | -20°C to +55°C |
| Weight | 4.0kg |

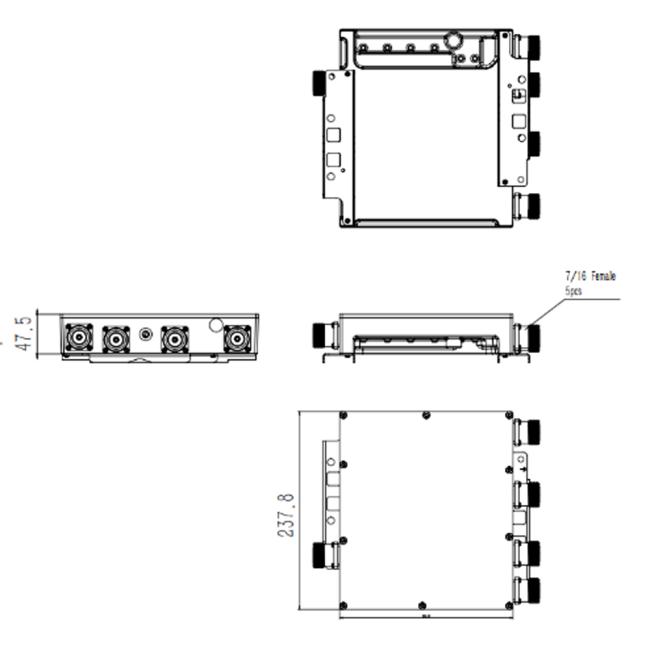

| Dimensions(mm,L×W×H,excluding connector) |
208*237.8*47.5 mm(One unit； without connector and mounting brackets) |
