DIN Female RF Combiner Duplexer Outdoor IP67 2100MHz
Price:
negotiation
MOQ:
5 pcs
Delivery Time:
2weeks
Brand:
VINNCOM
Product Description

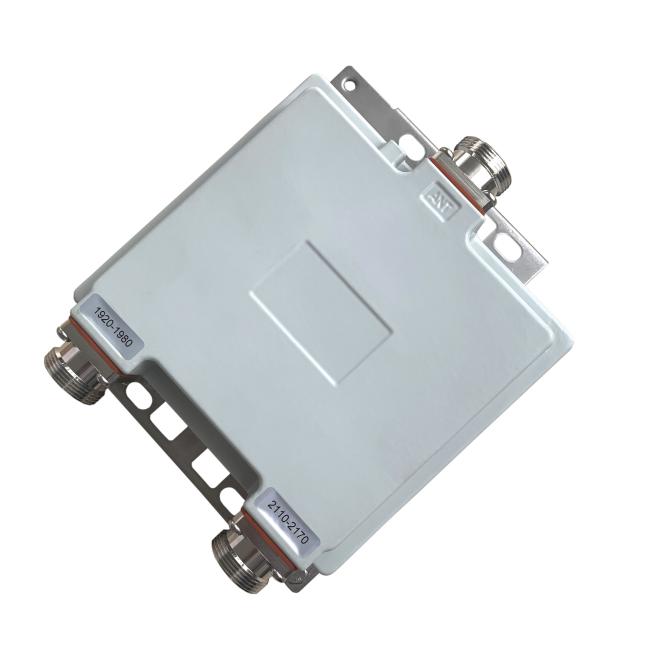

1920-2100MHz Combiner 1920-1980MHz/2110-2170MHz DIN Female Duplexer
- Low PIM
- Less Insertion Loss
- High isolation
| Operating Frequency( MHz ) | 1920-1980 & 2110-2170 |
| Impedance( Ohm ) | 50 |
| Return Loss(dB) | ≥20 |
| Insertion Loss(dB) | ≤0.3 |
| Rejection(dB) | ≥50 |
| IM3 (dBc @ 2×43dBm) | -160 |
| Input Average Power(Watt, max) | 150 |
| Application | Indoor/Outdoor(IP67) |
| DC/AISG | By-pass(max. 2.5A) |
| Lightning Protection | 3KA;10/350us pulse |
| Interface | DIN Female |
| Operating Temperature( ℃) | -20 ~ + 55 |
| Relative Humidity | 0~95% |
| Weight(kg) | 3.0 |

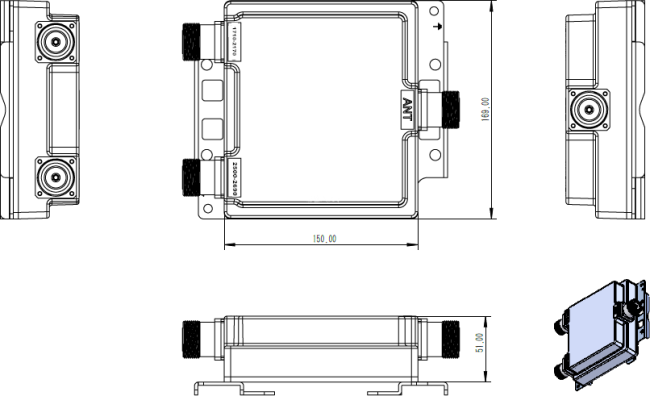

| Dimensions(mm,L×W×H,excl. Connector & BArNaTckets) | 150×169×51 |
-
If you are interested, please come and make an inquiry
