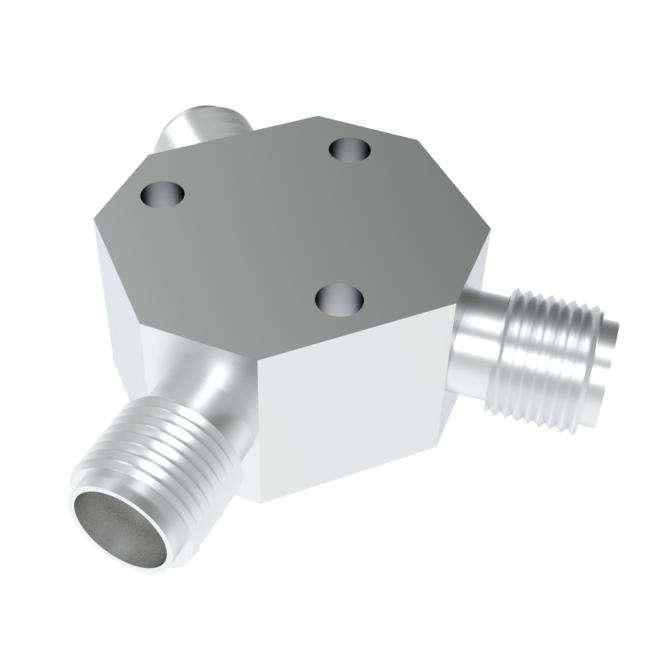

67G 1W Female Wilkinson Antenna Power Divider 1.85mm Two Way
Price:
negotiation
MOQ:
5pcs
Delivery Time:
2-4weeks
Brand:
Vinncom
Product Description
2 Way Resistive Power Divider 67G 1W 1.85mm Female Splitter
- Wide band frequency
- Less Insertion Loss
- Good VSWR
| Part Number | VN-PD-67G-1.85-2W |
| Operating Frequency ( GHz ) | DC-67G |
|
Impedance( Ohm ) |
50 |
| Input VSWR | ≤1.50 |
| Output VSWR | ≤2.50 |
| Insertion loss | ≤8.0 |
| Average Power (Watt max.) | 1W |
|
Isolation(dB) |
≥9 |
|
Amplitude Balance(dB) |
±0.9 |
| Phase Balance | ±10° |
|
Operating Temperature( ℃ ) |
-35 ~ + 75c |
|
Interface |
1.85mm Female |

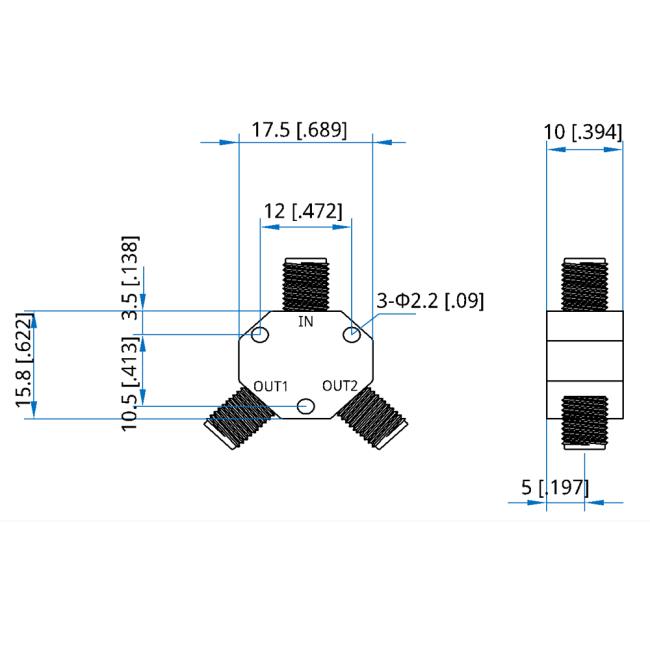

| Size | 17.5*15.8*10mm |
| Weight | 40g |
|
Dimension Tolerance(mm) |
±0.5 |
|
Mounting |
3-Φ2.2mm through-hole |
