SMA Wilkinson Antenna Power Divider Broadband Power Combiner 500-18000MHz 2 Way
Price:
negotiation
MOQ:
5pcs
Delivery Time:
2-4weeks
Brand:
Vinncom
Product Description
500-18000MHz 2 Way Power Divider/Combiner SMA Female Connector
- Wide band frequency
- Good VSWR at all ports
- Less Insertion Loss
| Part Number | VN-PD-500-18000-OX2 |
| Operating Frequency ( MHz ) | 500-18000 |
|
Impedance( Ohm ) |
50 |
| Input VSWR | ≤1.60 |
| Output VSWR | ≤1.50 |
| Insertion loss | ≤1.2(SMA) |
| Average Power (Watt max.) | 20W max. / 1W max. as combiner |
|
Isolation(dB) |
≥16 |
|
Amplitude Balance(dB) |
±0.3 |
| Phase Balance | ±5° |
|
Operating Temperature( ℃ ) |
-45 ~ + 85c |
|
Interface |
SMA Female N Female |
|

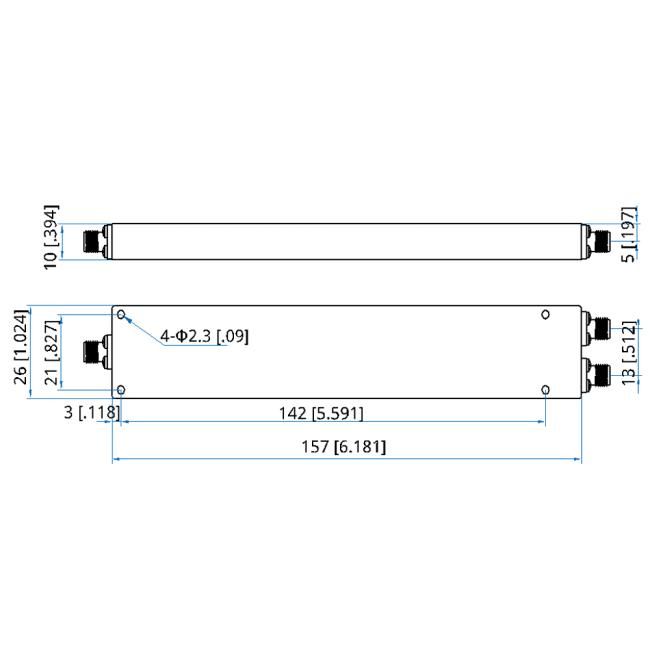

Dimension Tolerance(mm) |
±0.5 |
|
Mounting |
4-Φ2.3mm through-hole (SMA) |
