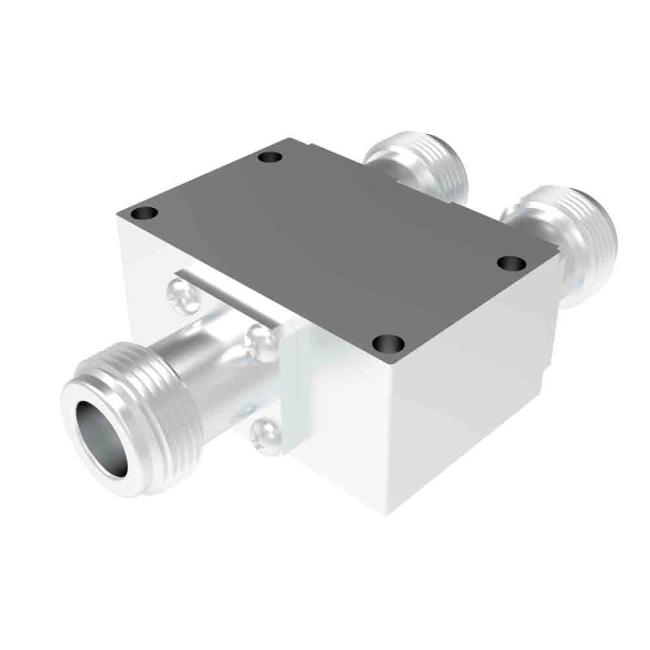

2G Wideband Wilkinson Antenna Power Divider N Female Connector 2000Mhz
Price:
negotiation
MOQ:
5pcs
Delivery Time:
2-4weeks
Brand:
Vinncom
Product Description
2G 2 Way Wilkinson Power Splitter N Female Connector
- Good VSWR at all ports
- Less Insertion Loss
- High isolation
| Part Number | VN-PD-1000-2000-OX2 |
| Operating Frequency ( MHz ) | 1000-2000 |
|
Impedance( Ohm ) |
50 |
| Input VSWR | ≤1.20 |
| Output VSWR | ≤1.20 |
| Insertion loss | ≤0.35(N) |
| Average Power (Watt max.) | 30W max. / 2W max. as combiner |
|
Isolation(dB) |
≥20 |
|
Amplitude Balance(dB) |
±0.2 |
| Phase Balance | ±2° |
|
Operating Temperature( ℃ ) |
-45 ~ + 85c |
|
Interface |
N Female |
|

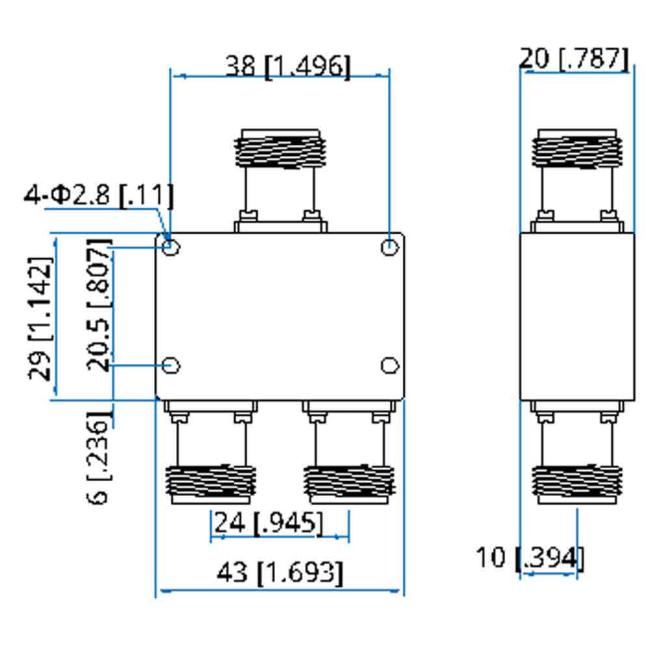

Dimension Tolerance(mm) |
±0.5 |
|
Mounting |
4-Φ2.8mm through-hole |
