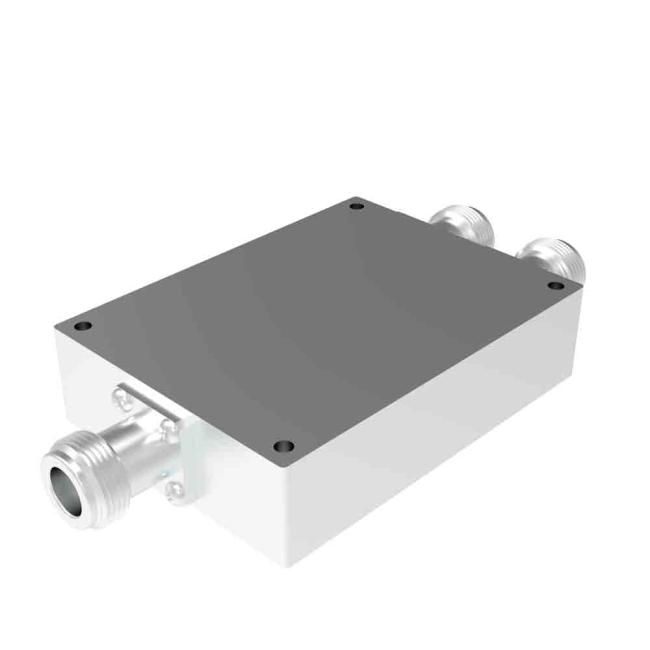

2 Way Wilkinson Antenna Power Divider 1000-4000MHz N Female
Price:
negotiation
MOQ:
5pcs
Delivery Time:
2-4weeks
Brand:
Vinncom
Product Description
1000-4000MHz N Female 2 Way Power Divider/Combiner/Wilkinson Power Divider
- Wide band frequency
- Less Insertion Loss
- High isolation
| Part Number | VN-PD-1000-4000-ON2 |
| Operating Frequency ( MHz ) | 1000-4000 |
|
Impedance( Ohm ) |
50 |
| Input VSWR | ≤1.50 |
| Output VSWR | ≤1.30 |
| Insertion loss | ≤1.2 |
| Average Power (Watt max.) | 200W max. / 10W max. as combiner |
|
Isolation(dB) |
≥16 |
|
Amplitude Balance(dB) |
±0.3 |
| Phase Balance | ±4° |
|
Operating Temperature( ℃ ) |
-35 ~ + 75c |
|
Interface |
N Female |

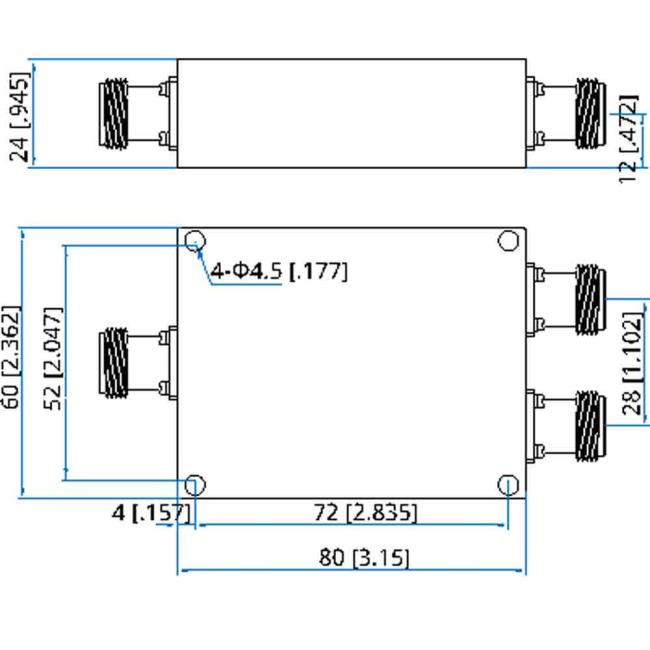

| Size | 80*60*24mm |
| Weight | 220g |
|
Dimension Tolerance(mm) |
±0.5 |
|
Mounting |
4-Φ4.5mm through-hole |
