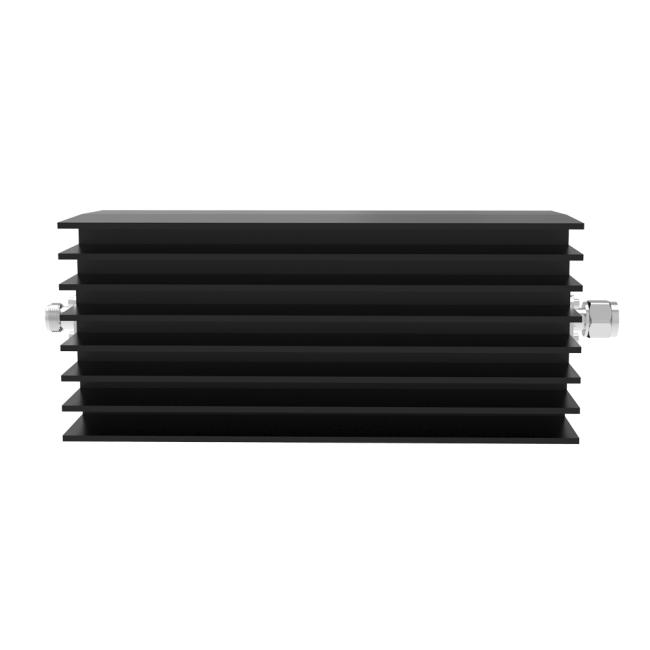

RF 250W 10dB Attenuator Micorwave Components N Male N Female
DC-18GHz RF Micorwave Components 250W N Male-N Female 10dB Attenuator
- Low standing wave
- High attenuation accuracy
- High indicator stability
| Part Number | VN-AT-18G-250W-ONx | ||||
| Operating Frequency | DC-18 GHZ | ||||
| Impedance ( Ohm ) | 50 | ||||
| Application | Indoor & Outdoor | ||||
| Degree of Protection | IP65 | ||||
| Handling Power (Watt, max) | 250W | ||||
| Interface | N Male - N Female | ||||
| Operating Temperature ( ℃ ) | -40 ~ + 80 | ||||
| Attenuation(dB) | 10~20 | 21~30 | 31~40 | 41~60 | VSWR |
| DC-4GHz | ±0.7 | ±0.8 | ±0.9 | ±0.9 | ≤1.20 |
| DC-8GHz | ±0.8 | ±0.9 | ±0.9 | ±0.9 | ≤1.25 |
| DC-12.4GHz | ±0.9 | ±1.0 | ±1.1 | ±1.1 | ≤1.35 |
| DC-18GHz | ±2.0 | ±1.5 | ±1.3 | ±1.4 | ≤1.45 |

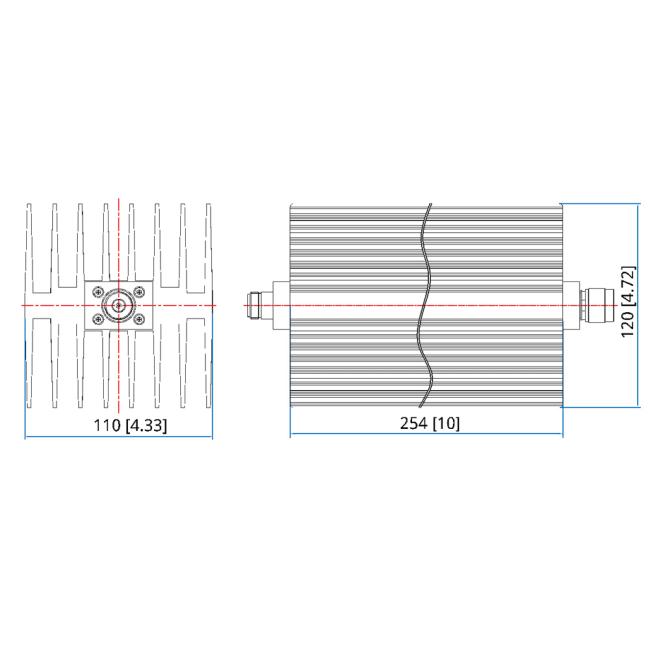

| Dimension (mm)(L×W×H, excl connector) | 254*120*110mm | ||||
| Net Weight (g) | / | ||||
| Packing Dimensions (mm,L×W×H) | / | ||||
| Packing Carton Size (mm,L×W×H) | / | ||||
| ROHS Compliance | Yes | ||||
