OEM High Power DC RF Dummy Load 26GHz 10W SMA Female

Price Negotiable
Price: negotiation
MOQ: 5pcs
Delivery Time: 2-4weeks
Brand: Vinncom
Product Description

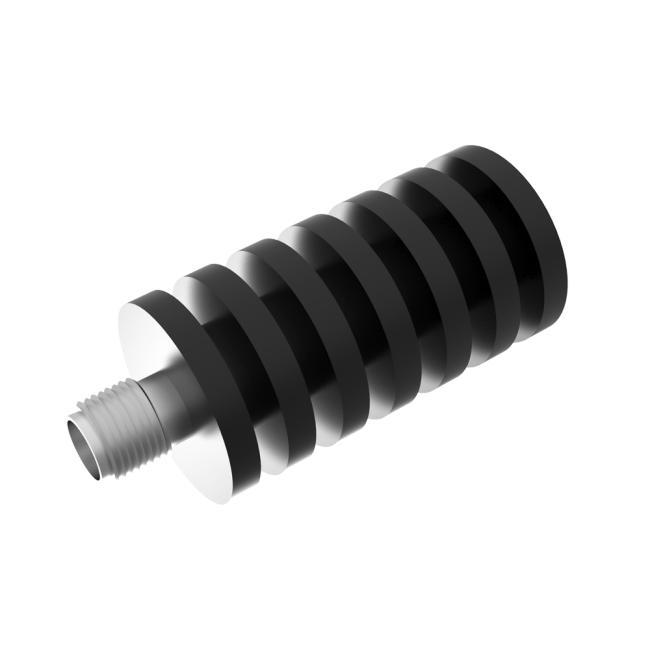

26GHz 10W SMA Female RF Dummy Load



  • Wide band
  • Good VSWR
  • Good water resistance



Part Number VN-DL-26G-10W-OSF
Operating Frequency DC-26 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 10W
Interface SMA Female
Operating Temperature ( ℃ ) -55~+125℃
VSWR 1.3max
Dimension (mm)(excluding connector) Φ16.5*41
