China 698-4000MHz 20W Low PIM Attenuators N Female / N Male IP65 For Indoor Outdoor for sale

698-4000MHz 20W Low PIM Attenuators N Female / N Male IP65 For Indoor Outdoor

Price Negotiable
Price: Negotiable
MOQ: 1 pcs
Delivery Time: Negotiable
Brand: Vinncom
Product Description

698-4000MHz 20W Low PIM Attenuators



  • Wide band frequency
  • Low PIM up to -155dBc@43dBm*2
  • High Handling Power



Part Number VN-AT-0740-20W-ONx-155
Operating Frequency 698-4000MHz
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 20W
Interface N Female- N Male
IM3 (dBc @ 2×43dBm) -155
Operating Temperature ( C ) -40 ~ + 80
Operating Humidity 95%
Attenuation (dB) 3 6 10 15 20 30
Attenuation Accuracy - [dB] ± 0.8 ± 1.0 ± 1.0 ± 1.2 ± 1.2 ± 1.3
VSWR 1.2

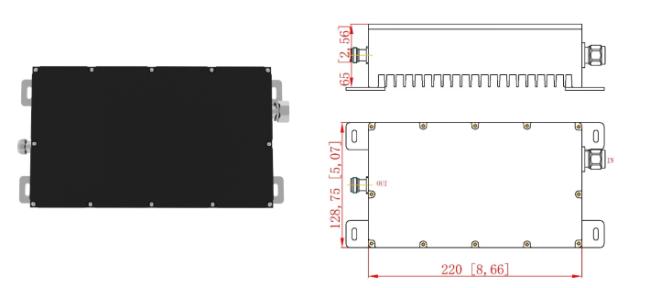

Dimension (mm), excl connector) 220*128.75*90(L ×W × H)
ROHS Compliance Yes
