DC-4000MHz Attenuator N Male To N Female High Frequency

Price Negotiable
Price: negotiable
MOQ: 5 pcs
Delivery Time: Negotiable
Brand: Vinncom
Product Description

DC-4000MHz Attenuator N Male To N Female



  • Good VSWR at all ports
  • High attenuation accuracy
  • Wide band frequency



VN-AT-4G-10W-INX.pdf

Part Number VN-AT-4G-10W-INX
Operating Frequency ( MHz ) DC-4000
Impedance ( Ohm ) 50
VSWR ≤1.25
Attenuation(dB) 1 2 3 5 6 10 20 30
Attenuation Tolerance(dB) ±0.4 ±0.4 ±0.6 ±0.3 ±0.3 ±0.8 ±0.8 ±1.0
Interface N Male - N Female
Operating Temperature ( ℃ ) -40 ~ + 80
Application Indoor
Handling Power (Watt, max) 10

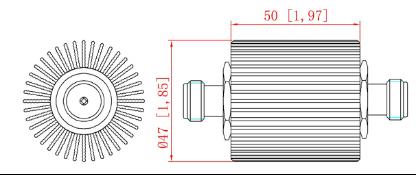

      Dimension (mm)(L*W*H, excl connector)       Φ47X50
Packing Dimensions (mm,L*W*H) 65X65X105
Packing Carton Size (mm,L*W*H) 350X350X225
ROHS Compliance Yes
