450-900MHz 2in 2out N Female Hybrid Coupler With Customized Connector
Price:
Negotiable
MOQ:
5pcs
Delivery Time:
Negotiable
Brand:
Vinncom
Product Description

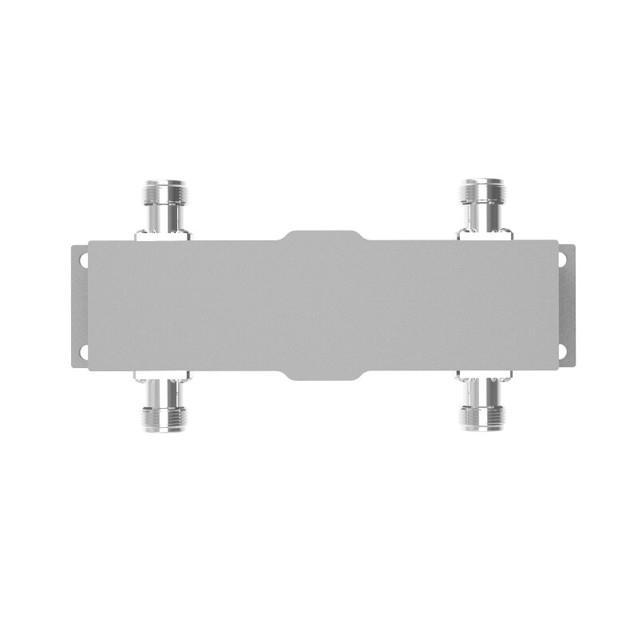

450-900MHz 2in 2out N Female Hybrid Coupler
- Good VSWR at all ports
- High isolation
- Good PIM up to -163@43dBm*2
| Part Number | VN-HC2x2-04509-ON-xxx |
| Operating Frequency ( MHz ) | 450-900 |
| Impedance ( Ohm ) | 50 |
| VSWR | ≤1.25 |
| Coupling (dB) | 3.0±0.5 |
| Insertion Loss (dB) | 3.5 |
| Isolation (dB) | ≥22 |
| IM3 (dBc @ 2×43dBm)@xxx | -150 / -155 / -160 /-163 |
| Application | Indoor & Outdoor |
| Degree of Protection | IP65 |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Interface | N Female |
| Handling Power (Watt, max) | 300 |
| Peak Power (Watt, max) | 1200 |

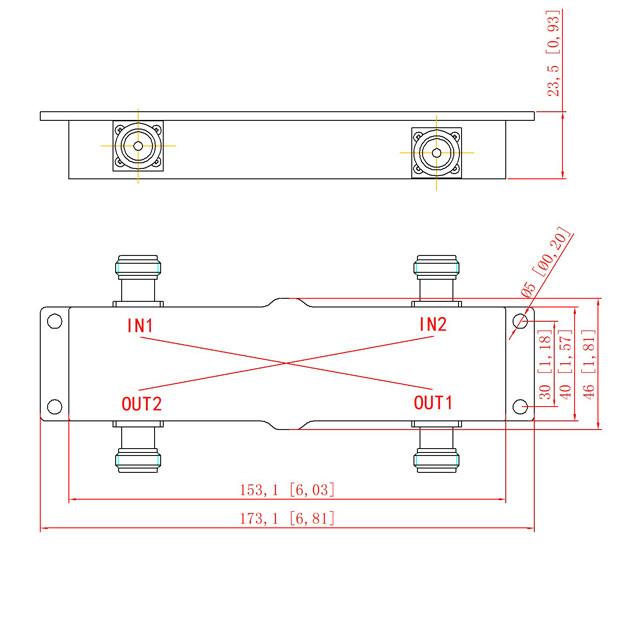

| Dimension (mm)(L×W×H, excl connector) | 173.1×46×31.5 |
| ROHS Compliance | Yes |
