100-1000MHz 2in 2out N Female Hybrid Coupler
Price:
negotiable
MOQ:
5 pcs
Delivery Time:
Negotiable
Brand:
Vinncom
Product Description

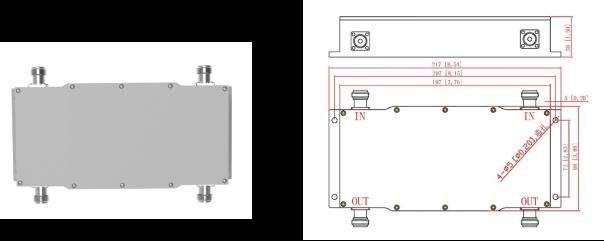

100-1000MHz 2in 2out N Female Hybrid Coupler
- Good VSWR
- High isolation
- Low PIM
| Part Number | VN-HC2x2-001110-ON-xxx |
| Operating Frequency ( MHz ) | 100-1000 |
| Impedance ( Ohm ) | 50 |
| VSWR | ≤1.30 |
| Coupling (dB) | 3.0±1.2 |
| Insertion Loss (dB) | 4.2 |
| Isolation (dB) | ≥20 |
| IM3 (dBc @ 2×43dBm)@xxx | -150 / -155 / -160 /-163 |
| Application | Indoor & Outdoor |
| Degree of Protection | IP65 |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Interface | N Female |
| Handling Power (Watt, max) | 300 |
| Peak Power (Watt, max) | 1200 |
| Dimension (mm)(L×W×H, excl connector) | 217 × 98× 38 |
| ROHS Compliance | Yes |
