DC-4G 5W 4.3-10 Male-4.3-10 Female RF Attenuator 40~60dB
Price:
negotiable
MOQ:
5 pcs
Delivery Time:
Negotiable
Brand:
Vinncom
Product Description
DC-4G 5W 4.3-10Male-4.3-10 Female 40~60dB
- Good VSWR
- High indicator stability
- High attenuation accuracy
| Part Number | VN-AT-4G-5W-OP40~60 | ||
| Operating Frequency | DC-4000 | ||
| Impedance ( Ohm ) | 50 | ||
| VSWR | ≤1.25@DC-3000 | ||
| Application | Indoor & Outdoor | ||
| Degree of Protection | IP65 | ||
| Handling Power (Watt) | 5(max) | ||
| Interface | 4.3-10 Male - 4.3-10 Female | ||
| Operating Temperature ( ℃ ) | -40 ~ + 80 | ||
| Attenuation(dB) | 40 | 50 | 60 |
| Attenuation Tolerance(dB) | ±1.2 | ±1.5 | ±1.8 |

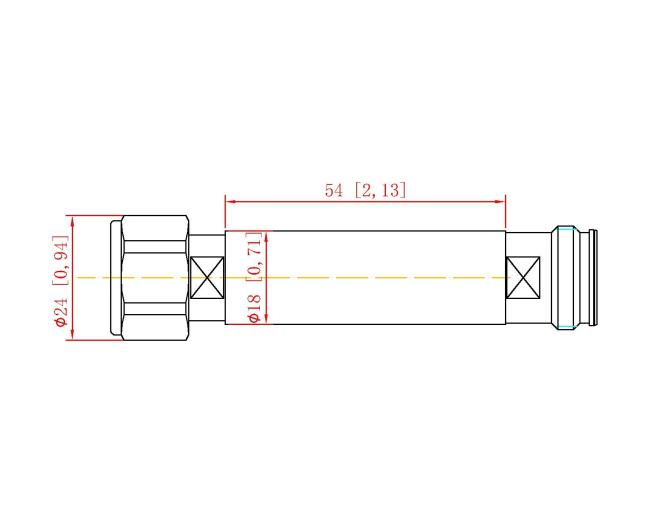

| Dimension (mm) | 90×Φ18(includes connectors) | ||
| Net Weight (g) | 70 | ||
| Packing Dimensions (mm,L×W×H) | 110 × 30 ×30 | ||
| Packing Carton Size (mm,L×W×H) | 220 × 220 × 215 | ||
| ROHS Compliance | Yes | ||
