DC-4000MHz 50W Attenuator 4.3-10 Male To 4.3-10 Female
Price:
negotiable
MOQ:
5 pcs
Delivery Time:
Negotiable
Brand:
Vinncom
Product Description

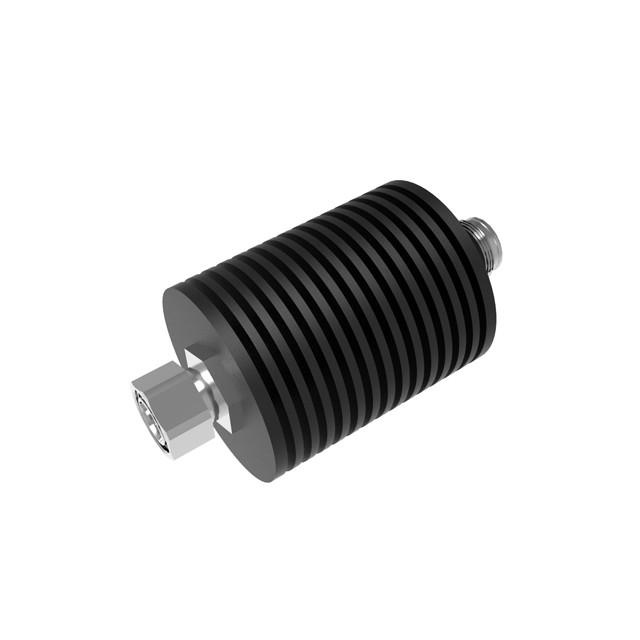

DC-4000MHz 50W Attenuator 4.3-10 Male To 4.3-10 Female
- High attenuation accuracy
- Low standing wave
- Wide working frequency range
RF attenuators model number VN-LD-6G-100W-OPf-R.These
RF attenuators can be fixed, switched,surface mounted or even continuously variable.
Vinncom has many types of RF attenuators with different frequency range.
Vinncom also can supply attenuators with good PIM value in some RF syetems.
| Part Number | VN-AT-4G-50W-IPX | ||||||
| Operating Frequency ( MHz ) | DC-4000 | ||||||
| Impedance ( Ohm ) | 50 | ||||||
| VSWR | ≤1.25 | ||||||
| Attenuation(dB) | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| Attenuation Tolerance(dB) | ±0.4 | ±0.4 | ±0.5 | ±0.5 | ±0.6 | ±0.8 | ±0.9 |
| Interface | 4.3-10 Male - 4.3-10 Female | ||||||
| Operating Temperature ( ℃ ) | -40 ~ + 80 | ||||||
| Application | Indoor | ||||||
| Handling Power (Watt, max) | 50 | ||||||

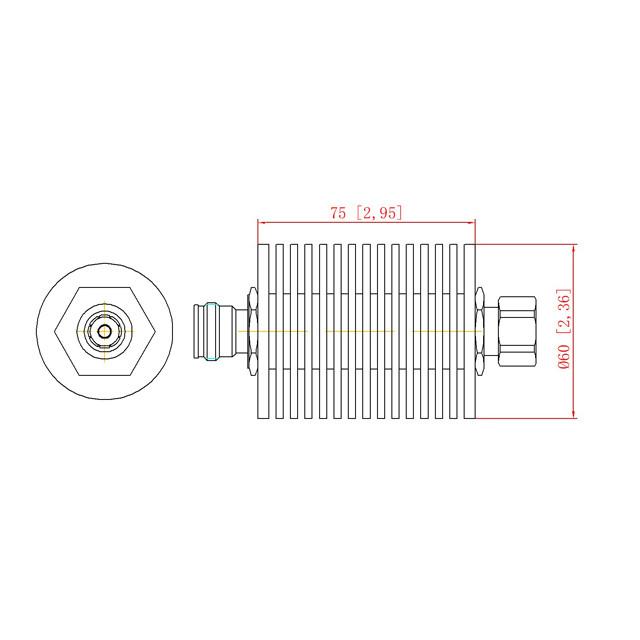

| Dimension (mm)(L*W*H, excl connector) | Φ60X75 | ||||||
| Packing Dimensions (mm,L*W*H) | 65X65X210 | ||||||
| Packing Carton Size (mm,L*W*H) | 350X350X220 | ||||||
| ROHS Compliance | Yes | ||||||
