DC-4000MHz 200W Attenuator N Male To N Female

Price Negotiable
Price: negotiable
MOQ: 5 pcs
Delivery Time: Negotiable
Brand: Vinncom
Product Description

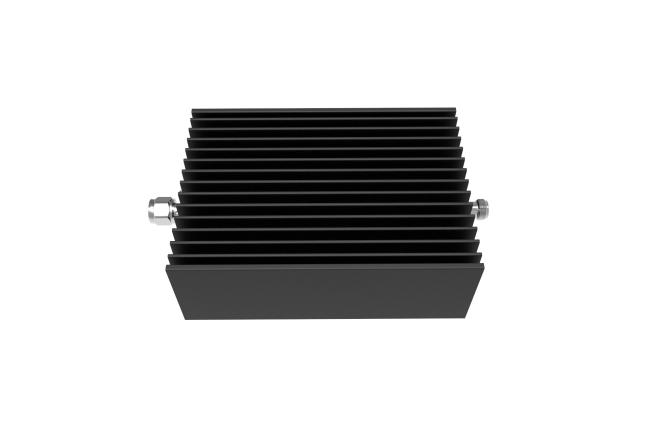

DC-4000MHz 200W Attenuator N Male To N Female



  • High attenuation accuracy
  • Wide working frequency range

  • Low standing wave

    ​

     VN-AT-4G-200W-INX-S.pdf

Part Number VN-AT-4G-200W-INX-S
Operating Frequency ( MHz ) DC-4000
Impedance ( Ohm ) 50
VSWR ≤1.30
Attenuation(dB) 40
Attenuation Tolerance(dB) ±3.0
Interface N Male - N Female
Operating Temperature ( ℃ ) -40 ~ + 80
Application Indoor
Handling Power (Watt, max) 200

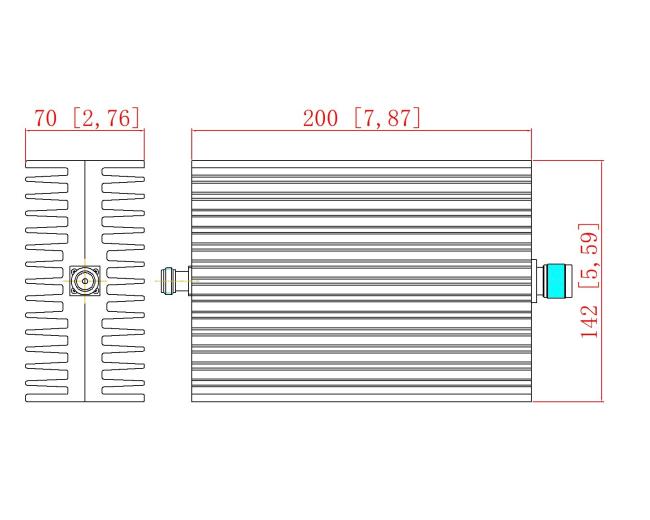

Dimension (mm)(L*W*H, excl connector) 200X142X70
ROHS Compliance Yes
