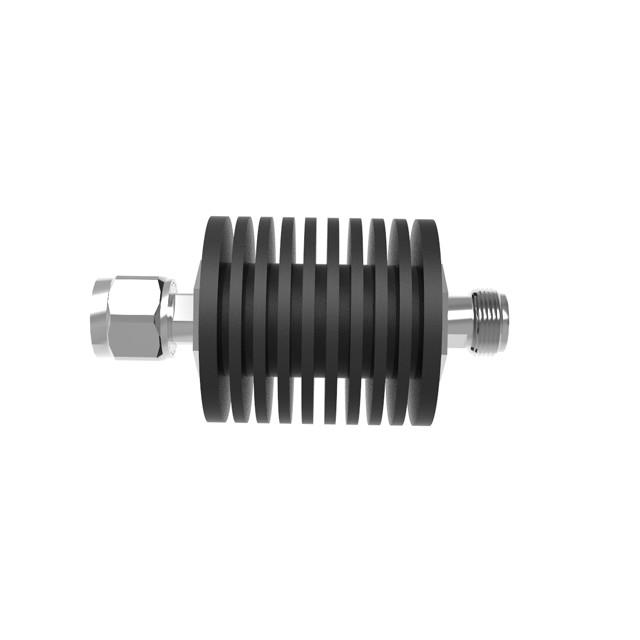

DC-6000MHz 20W Attenuator N Male To N Female
Price:
negotiable
MOQ:
5 pcs
Delivery Time:
Negotiable
Brand:
Vinncom
Product Description
DC-6000MHz 20W Attenuator N Male To N Female
-
Wide working frequency range
- High indicator stability
-
Low standing wave
| Part Number | VN-AT-6G-20W-INX | ||
| Operating Frequency ( MHz ) | DC-6000 | ||
| Impedance ( Ohm ) | 50 | ||
| VSWR | ≤1.30 | ||
| Attenuation(dB) | 10 | 20 | 30 |
| Attenuation Tolerance(dB) | ±0.7 | ±0.8 | ±1.5 |
| Interface | N Male - N Female | ||
| Operating Temperature ( ℃ ) | -40 ~ + 80 | ||
| Application | Indoor | ||
| Handling Power (Watt, max) | 20 | ||

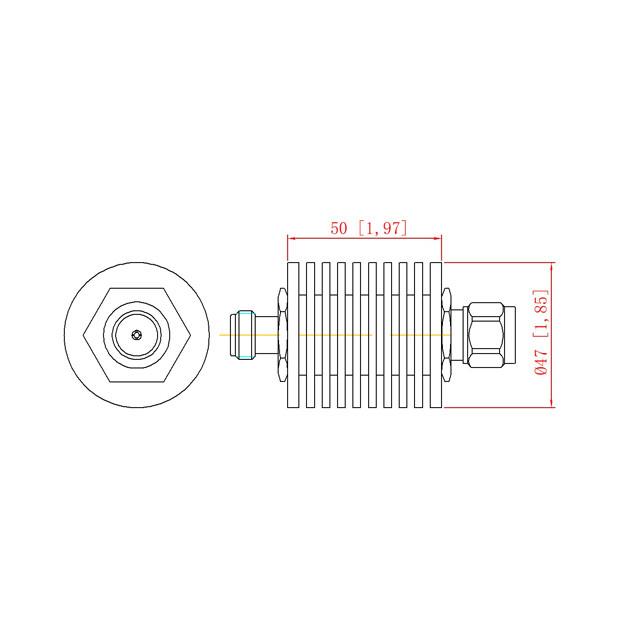

| Dimension (mm)(L*W*H, excl connector) | Φ47X50 | ||
| Packing Dimensions (mm,L*W*H) | 65X65X105 | ||
| Packing Carton Size (mm,L*W*H) | 350X350X225 | ||
| ROHS Compliance | Yes | ||
