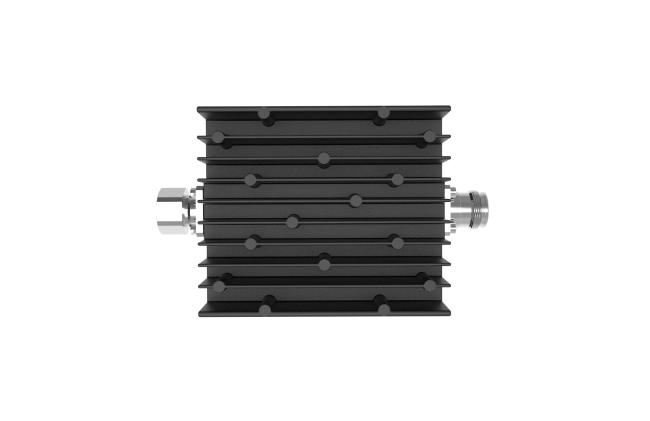

DC-6000MHz 100W Attenuator 4.3-10 Male To 4.3-10 Female

Price Negotiable
Price: negotiable
MOQ: 5 pcs
Delivery Time: Negotiable
Brand: Vinncom
Product Description

DC-6000MHz 100W Attenuator 4.3-10 Male To 4.3-10 Female



  • Low standing wave
  • High indicator stability
  • Wide working frequency range



     VN-AT-6G-100W-IPX-S.pdf

Part Number VN-AT-6G-100W-IPX-R
Operating Frequency ( MHz ) DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.30
Attenuation(dB) 10 20 30 40
Attenuation Tolerance(dB) ±1.4 ±1.5 ±1.6 ±1.6
Interface 4.3-10 Male - 4.3-10 Female
Operating Temperature ( ℃ ) -40 ~ + 80
Application Indoor
Handling Power (Watt, max) 100

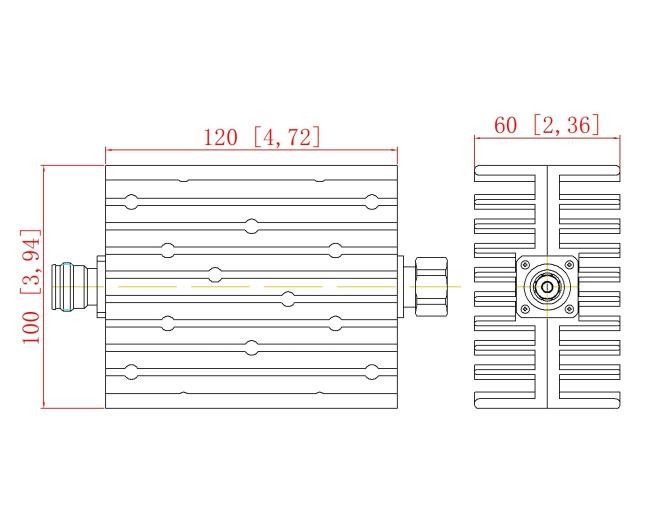

Dimension (mm)(L*W*H, excl connector) 120X100X60
Packing Dimensions (mm,L*W*H) 260X135X120
Packing Carton Size (mm,L*W*H) 540X500X155
ROHS Compliance Yes
