China 380-6000MHz 2in 2out N Female Hybrid Coupler for sale

380-6000MHz 2in 2out N Female Hybrid Coupler

Price Negotiable
Price: Negotiable
MOQ: 5pcs
Delivery Time: Negotiable
Brand: Vinncom
Product Description

380-6000MHz 2in 2out N Female Hybrid Coupler



  • Good VSWR at all ports
  • High isolation
  • Low PIM -165dBc@43dBm*2

                                                                                                                                                              ​VN-HC2x2-03860-ON-xxx.pdf
Part Number VN-HC2x2-03860-ON-xxx
Operating Frequency ( MHz ) 380-6000
Impedance ( Ohm ) 50
VSWR 1.35
Coupling (dB) 3
Insertion Loss (dB) ±2
Isolation (dB) 20
IM3 (dBc @ 2×43dBm)@xxx -150/-160/-163/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 200
Peak Power (Watt, max) 1200

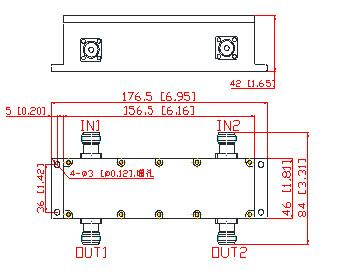

Dimension (mm)(L×W×H, excl connector) 176.5X46X42
Net Weight (g) 780
ROHS Compliance Yes
Packing Dimensions (mm,L×W×H) 250X105X50
Packing Carton Size (mm,L×W×H) 565X260X120
