China 600-4200MHz 2in 2out 4.3-10 Female Hybrid Coupler for sale

600-4200MHz 2in 2out 4.3-10 Female Hybrid Coupler

Price Negotiable
Price: negotiable
MOQ: 5 pcs
Delivery Time: Negotiable
Brand: Vinncom
Product Description

600-4200MHz 2in 2out 4.3-10 Female Hybrid Coupler



  • High isolation
  • Wide band
  • Low PIM -165dBc@43dBm*2



                           VN-HC2x2-0642-OP-xxx.pdf

Part Number VN-HC2x2-0642-OP-xxx
Operating Frequency ( MHz ) 600-4200
Impedance ( Ohm ) 50
VSWR 1.25
Coupling (dB) 3
Insertion Loss (dB) ±1
Isolation (dB) 24
IM3 (dBc @ 2×43dBm)@xxx -150/-153/-163/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500

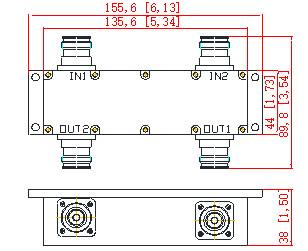

Dimension (mm)(L×W×H, excl connector) 155.6*44*38
Packing Dimensions (mm,L×W×H) 170*100*40
Packing Carton Size (mm,L×W×H) 520*360*105
