High Frequency 698-4200MHz 2in 2out N Female Hybrid Coupler
Price:
negotiable
MOQ:
5 pcs
Delivery Time:
Negotiable
Brand:
Vinncom
Product Description
698-4200MHz 2in 2out N Female Hybrid Coupler
- High isolation
- Wide band
- Good VSWR
| Part Number | VN-HC2x2-0742-ON-150 |
| Operating Frequency ( MHz ) | 698-4200 |
| Impedance ( Ohm ) | 50 |
| VSWR | 1.25 |
| Coupling (dB) | 3 |
| Insertion Loss (dB) | ±1 |
| Isolation (dB) | 24 |
| IM3 (dBc @ 2×43dBm) | -150 |
| Application | Indoor & Outdoor |
| Degree of Protection | IP65 |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Interface | N Female |
| Handling Power (Watt, max) | 300 |
| Peak Power (Watt, max) | 1200 |

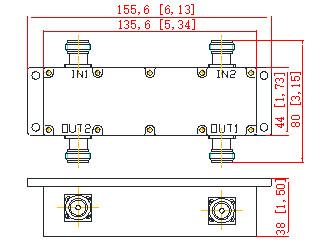

| Dimension (mm)(L×W×H, excl connector) | 155.6*44*38 |
| Packing Dimensions (mm,L×W×H) | 170*100*40 |
| Packing Carton Size (mm,L×W×H) | 520*360*105 |
| ROHS Compliance | Yes |
