China 150-1000MHz 2in 2out N Female Hybrid Coupler for sale

150-1000MHz 2in 2out N Female Hybrid Coupler

Price Negotiable
Price: Negotiable
MOQ: 5 pcs
Delivery Time: Negotiable
Brand: Vinncom
Product Description

150-1000MHz 2in 2out N Female Hybrid Coupler



  • Wide band
  • Portable for installation
  • Good returen loss



                                                                                              VN-HC2x2-15001-ON-xxx.pdf


Part Number

VN-HC2x2-15001-ON-xxx

Operating Frequency ( MHz )

150-1000

Impedance ( Ohm )

50

VSWR

1.3

Coupling  (dB)

3.2

Insertion Loss (dB)

±1.0

Isolation (dB)

20

IM3 (dBc @ 2×43dBm)@

-150

Application

Indoor & Outdoor

Degree of Protection

IP65

Operating Temperature ( ℃ )

-40 ~ + 80

Interface

N Female

Handling Power (Watt, max)

300

Peak Power (Watt, max)

1200

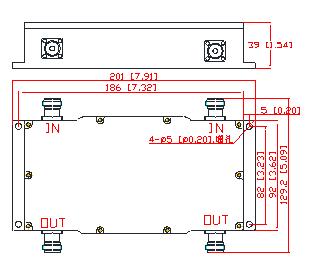

Dimension (mm)(L×W×H, excl connector)

201X98X39

Net Weight (g)

1515± 5%

Packing Dimensions (mm,L×W×H)

210X170X65

Packing Carton Size (mm,L×W×H)

530X440X80

ROHS Compliance

Yes
