698-4000MHz 10W Attenuator 4.3-10 Female To 4.3-10 Female LOW PIM Attenuator
Price:
negotiable
MOQ:
5 pcs
Delivery Time:
Negotiable
Brand:
Vinncom
Product Description
698-4000MHz 10W Attenuator 4.3-10 Female To 4.3-10 Female LOW PIM Attenuator
- High attenuation accuracy
- Low standing wave
- Low PIM
RF attenuators model number VN-LD-6G-100W-OPf-R.These
RF attenuators can be fixed, switched,surface mounted or even continuously variable.
Vinncom has many types of RF attenuators with different frequency range.
Vinncom also can supply attenuators with good PIM value in some RF syetems.
| Part Number | VN-AT-0740-10W-OPx | |||
| Operating Frequency(MHz) | 698-4000 | |||
| Impedance ( Ohm ) | 50 | |||
| VSWR | ≤1.30@DC-4000MHz | |||
| Attenuation(dB) | 3 | 6 | 10 | 20 |
| Attenuation Tolerance(dB) | ±0.9 | ±1.0 | ±1.2 | ±2.0 |
| Interface | 4.3-10 Female - 4.3-10 Female | |||
| Operating Temperature ( ℃ ) | -40 ~ + 80 | |||
| Application | Indoor or Outdoor | |||
| PIM(dBc@2*43dBm) | -155 | |||
| Degree of Protection | IP65 | |||
| Handling Power (Watt) | 10 | |||

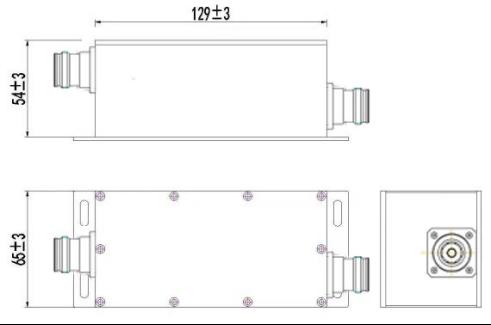

| Dimension (mm) | 129*54*65 | |||
| ROHS Compliance | Yes | |||
