Product Overview

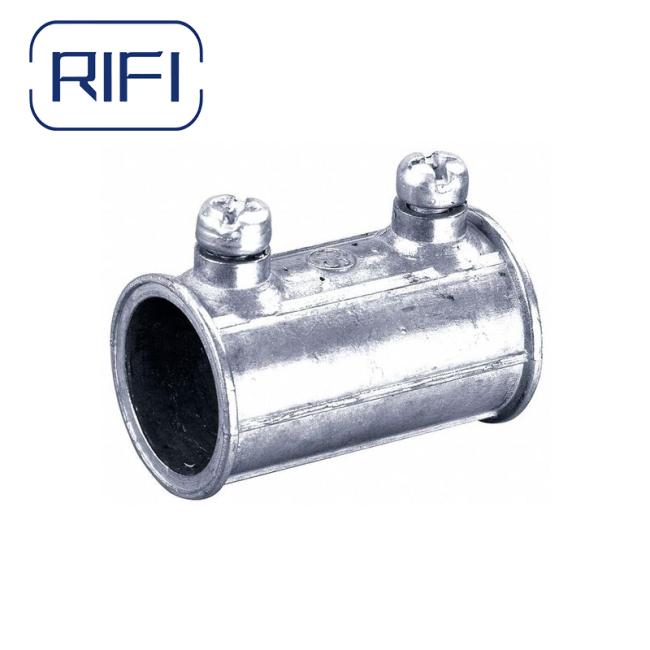

The EMT Set Screw Coupling Zinc Die Cast is an essential component for joining two sections of Electrical Metallic Tubing (EMT) in a secure and reliable manner. Designed for durability and ease of installation, this coupling ensures a robust connection that maintains the integrity of your electrical conduit system.

Key Features

• Durable Construction: Manufactured from high-quality zinc die-cast material for excellent strength and corrosion resistance.
• Secure Connection: Features a set screw design that ensures a tight and secure connection between EMT conduit sections.
• Easy Installation: Quick and straightforward installation process, requiring only basic tools.
• Standard Compliance: Meets UL 514B and CSA C22.2 No. 18.3 standards for electrical fittings.
• Versatile Application: Suitable for both indoor and outdoor use, providing flexibility for various projects.

Specifications

Applications

• Commercial Buildings: Ideal for office buildings, retail spaces, and warehouses.
• Industrial Facilities: Suitable for manufacturing plants, refineries, and other industrial environments.
• Residential Projects: Perfect for new home constructions and remodeling projects.
• Outdoor Installations: Reliable for exterior electrical systems, providing durability in various weather conditions.

Installation Instructions

1. Preparation: Ensure all components are clean and free from debris.
2. Cut Conduit: Measure and cut the EMT conduit to the required lengths, ensuring clean, square ends.
3. Insert Conduit: Slide the ends of the conduits into the coupling until they seat firmly against the stops.
4. Tighten Set Screws: Use a screwdriver to tighten the set screws on both ends of the coupling, securing the conduits in place.
5. Check Connection: Ensure the coupling and conduits are securely fastened and aligned properly.
