Automatic Bag Packing Machine For Rice Sugar Salt Flour Bags

Price Negotiable

Price: $15,380.00/sets >=1 sets

MOQ: Negotiable

Delivery Time: Negotiable

Brand: Leadworld

Product Description

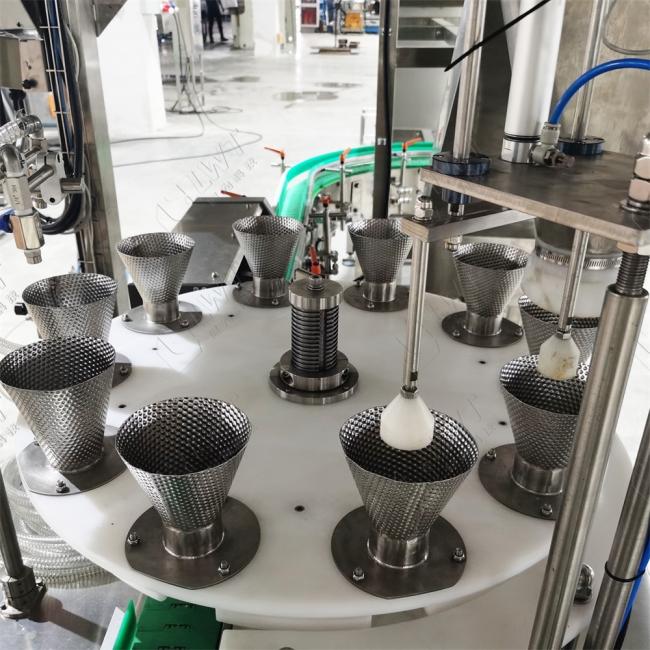

Product Show

Application:

Suitable for automatic weight packaging requirement of various of material in piece and grains. Such as puffed food, potato chips, frozen foods, biscuits, dried fruits, pet food, hardware, and so on.

Bag material: PP,CPP,PVC,PS,EVA,PET,PVDC/PVC,OPP/CPP.

Features

1. The computer weigher ensure the stable and accurate packaging weight.
2. Medium-speed and high-speed machine can be selected, meeting different production requirements.
3. The packaging machine can be equipped with a variety of functional options, such as Alphascope, punchingetc.
4. The computer weigher can be installed with hopper as required and suitable for different material.
5. Each machine has stainless steel and carbon steel structures, suitable for all levels of the customers' requirements.

Optional Products

Platform			Elevator
Model	LWT-2Platform	Model	LWT-300
Maximum Loading Weight	2T-3T	Convey speed	3750mm/min
Equipment Size	2000mm2000mm2000mm	Power	750W
Net Weight	350kg	Convey Measure	4T/H(Rice)
		Overall size	3000(L)×650(W)×3750(H)mm

Collecting table			Bag former
Model	LWT-C	Packing machine has one bag forming tube. If the bag width is fixed, no need to buy extra tube. If you have different bag widths, you have to buy extra tubes. For example, you have 3 bag widths, you have to buy extra two tubes. If only the bag length change, no need to buy extra bag forming tube. You can modify the parameter on the touch screen.
Convey speed	Speed can be changed(fast or slow depends on your choice)
Diameter	1.2m
Surface	Concave
Power	220V/370W/50HZ
Weight of machine	100KG
Packaging size	1300mm(L)380mm(W)1300mm(H)

Detailed instruction: 1.Conveyor body part: 1.1 Main body side chain plate:Plate thickness:δ2.0mm Material:SUS304. When produced according to the actual size. 1.2 Roller:Material SUS304,diameter is based one the actual load,cooperate with the plus or minus tolerance. 1.3 Riding wheel:Material Nylon processing molding,diameter is based one the actual load,cooperate with the plus or minus tolerance. 1.4 Bun foot:Nylon injection molding,Cooperate with stainless steel adjusting screw M16. 1.5 Guardrail part adopts big Caluminum trackCooperate with wear-resisting sheath； 1.6 Connecting plate:plate wicknessδ3.0mm Material:Stainless steel bending forming； 1.7 Accessories:Mounted Bearings,kinds of SUS304 screws,etc. 2.Conveying carrier part 2.1 Belt length

Explanation of the design plan

⚫According to the product information described by the customer, our company recommends the use of a stainless steel computerized automatic double-layer water bath/steam sterilizer. ⚫ The hot water is stored in the upper tank, which can be quickly filled during sterilization, the product heats up quickly, the product is completely immersed in the sterilization water, the temperature penetrates into the product in all directions, and the product matures quickly. ⚫ The design of this product is based on canned and flexible packaging sterilization, excluding glass bottles, the heating method is direct heating by a heating tube, the sterilization method is a circulating water bath, and the cooling method is The formula is direct cooling. ⚫ The control method is fully automatic computer control, the operator is only responsible for entering and leaving the sterilization material, all sterilization processes are automatically controlled, and can also be manually controlled. ⚫ The quality of the equipment is stable, durable, and the optimally designed sealing structure is more durable and easy to maintain; easy to operate and easy to install, according to ergonomic The design makes the machine safer and more convenient.

project	Content
Retort inner diameter/cylinder length/volume	1200mm /3600mm /about 4.5m3
Effective use size of sterilizer (length/width/volume)	3600mm /800mm /800mm
design pressure	0.35Mpa
maximum working pressure	0.3Mpa
Pressure test pressure	0.44Mpa
maximum operating temperature	143℃
total installed power	Water pump 7.5kw,cycle pump 5.5kw,exchange use
voltage	380V
Pot body material	SUS30408
pot body wall thickness	5mm
Footprint (L/W/H)	About 5500mm×2200mm×3100mm

Company Profile

LWT has always adhered to the business philosophy of innovation leading development, quality winning the market, and customer service first. With the goal of becoming the world's leading canning automatic production Packing line solution expert, it is committed to guiding the Production Packaging line industry's machinery production standards and actively promoting the improvement of the canning & Packaging industry's mechanical automation level.
