100G QSFP28 LR1 BIDI SFP Optical Module Transceiver 10KM SMF Single Fiber
100G QSFP28 LR1 BIDI Optical Transceiver 10KM SMF Single Fiber
100G QSFP28 BiDi LR1 single-fiber optical transceiver module is designed for 100G Ethernet links over 10km of single-mode fiber transmission. The module contains a single channel of optical signals operating at 100Gbps data rates. The module can convert four 25Gbps (NRZ) electrical signals to one 100Gbps (PAM4) optical signal or one 100Gbps (PAM4) optical signal to four 25Gbps (NRZ) electrical signals. The electrical interface of the module is compliant with OIF CEI-28G-VSR and QSFP28 MSA.
Key Features
- Supports 100GBASE-LR BIDI
- Lane signaling rate 106.25Gb/s with PAM4,111.8Gb/s compatible
- Up to 10km transmission on SMF
- EML Laser and PIN receiver
- 4x25.78Gb/s with NRZ electrical interface (CAUI-4)
- High speed I/O electrical interface
- I2C interface with integrated Digital Diagnostic monitoring
- QSFP28 MSA package with simplex LC connector
- Single +3.3V power supply
- Support HW TX_DIS and RX_LOS for telecom application
- Maximum power consumption 4 W
- Operating case temperature: 0 to +70 °C
- Compliant to 802.3cu, SFF-8636&SFF-8679 standard
- Complies with EU Directive 2015/863/EU
Application

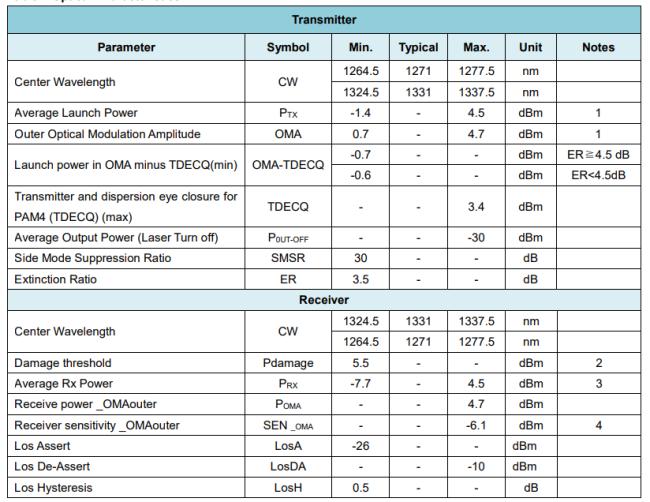

Product Detail

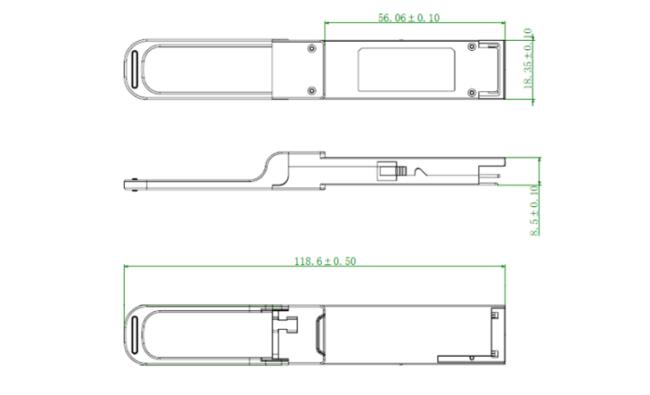

Outline Dimensions:
