PSM4 QSFP28 Optical Transceiver 100GBase-LR SMF 1310nm 2KM MPO Connector
QSFP28 PSM4 Transceiver 100GBase-LR SMF,1310nm 2KM,MPO Connector For Ethernet Link
Color Optic's OSFP28 PSM4 2km is a Four-Channel, Pluggable, Parallel, Fiber-Optic OSFP28 Transceiver for 100G Ethernet Applications. The QSFP28 full-duplex optical moduleoffers 4 independent transmit and receive channels, each capable of 26Gbps operatiorfor an aggregate data rate of 104Gbps 2km using single mode fiber. These modules aredesigned to operate over single mode fiber systems using DFB laser array. An opticafiber ribbon cable with an MPO/MTPTM connector can be plugged into the OSFP28module receptacle. OSFP28 PSM4 is one kind of parallel transceiver which providesincreased port density and total system cost savings.
Key Features
- Four-channel full-duplex transceiver modules
- Transmission data rate up to 26Gbit/s per channel
- Up to 2km transmission of single mode fiber
- Low power consumption <3.5W
- Operating case temperature 0℃ to 70℃
- 3.3V power supply voltage
- RoHS 6 compliant
- Hot Pluggable QSFP28 form factor
- Single MPO connector receptacle
- Built-in digital diagnostic function
Application
- 100GBASE Ethernet Links
- Proprietary High Speed Intercon
- Client-side 100G Telecom connections
Product Detail
It is uniquely serialized and data-traffic and application tested to ensure that they will integrate into your network seamlessly. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with G.652(with FEC) | D | 2 | km | |||
| Power Consumption | 3.5 | W | ||||
| Center Wavelength | L0 | 1294.53 | 1295.56 | 1296.59 | nm | |
| L1 | 1299.02 | 1300.05 | 1301.09 | nm | ||
| L2 | 1303.54 | 1304.58 | 1305.63 | nm | ||
| L3 | 1308.09 | 1309.14 | 1310.19 | nm | ||
| Average Launch Power,each Lane | PAVG | -6 | 2.0 | dBm | ||
| OMA, each Lane | POMA | -5 | 2.2 | dBm | ||
| Damage Threshold | 3 | dBm | ||||
| Overload, each Lane | 2.5 | |||||
| Receiver Sensitivity(OMA),each Lane | SEN | -11.35 | dBm | BER<1e-12 |

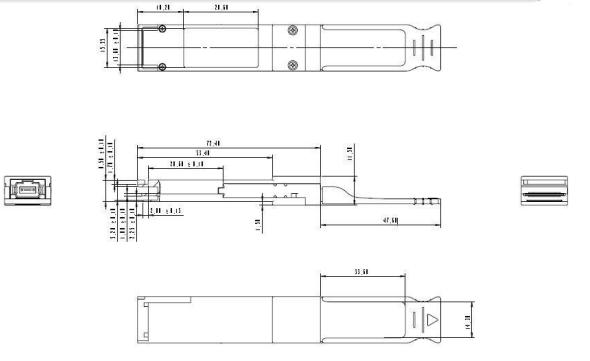

Outline Dimensions:
