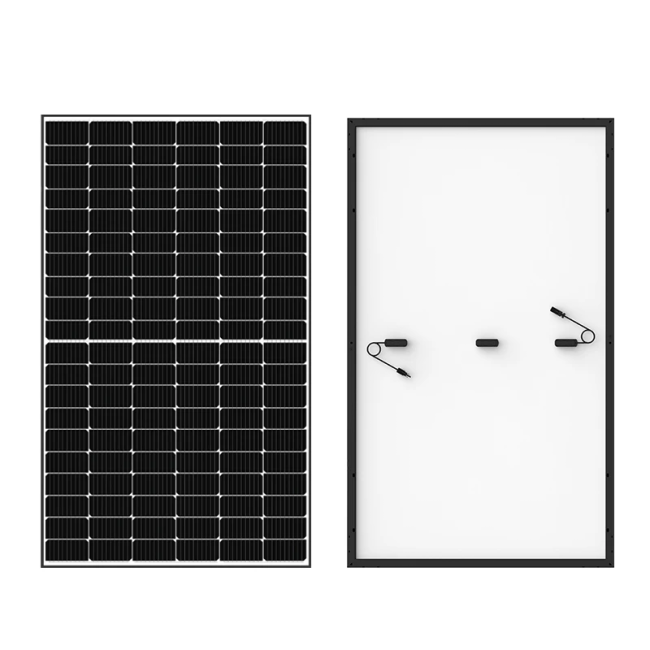

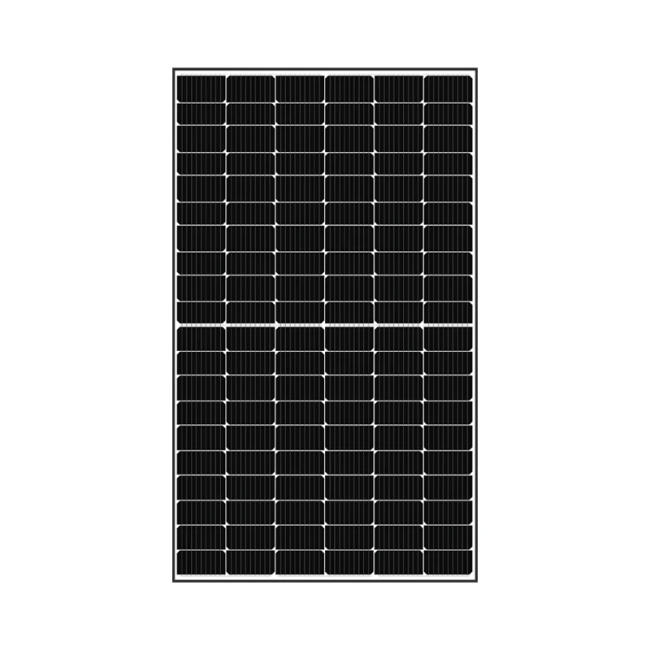

370W To 400W Bifacial Solar Module IP68 Photovoltaic Solar Panels
370W To 400W Bifacial Solar Module IP68 Photovoltaic Solar Panels
The 370W to 400W Bifacial Solar Module with IP68 rating is a high-performance photovoltaic panel designed for maximum efficiency. Featuring bifacial technology, it harnesses sunlight from both sides, boosting energy output. The IP68 rating ensures superior water and dust resistance, making it ideal for diverse environments. These panels are perfect for residential, commercial, and industrial applications, offering reliable and sustainable energy solutions. With robust construction and high-efficiency monocrystalline cells, this solar module provides long-lasting performance and optimal energy production.
Product Features:
1)Higher efficiency
With the ability of capturing sunlight from both sides,our product of bifacial solar panel can provide up to 21,96% more efficient compared with the common solar panel.
2)Easy to install and use
The pre-drilled holes on the back of the panel make it quick to mount on the roof or other situation.
3)Advanced Technology
As one of the most efficient solar technologies in the industry,HJT technology can make products less affected by changes in temperature. Bifacial products pass more sunlight up to 95%.
Product Details:
| Model | LS-D370M | LS-D375M | LS-D380M | LS-D385M | LS-D390M | LS-D395M | LS-D400M |
| Maximum Power(Pmax) | 370W | 375W | 380W | 385W | 390W | 395W | 400W |
| Maximum Power Voltage(Vmp) | 37.11V | 37.31V | 37.52V | 37.70V | 37.91V | 38.16V | 38.36V |
| Maximum Power Current(Imp) | 9.98A | 10.06A | 10.14A | 10.22A | 10.30A | 10.36A | 10.44A |
| Open-Circuit Voltage(Voc) | 43.96V | 44.09V | 44.22V | 44.35V | 44.48V | 44.61V | 44.74V |
| Short-Circuit Current(Isc) | 10.38A | 10.44A | 10.50A | 10.56A | 10.62A | 10.68A | 10.74A |
| Power Tolerance(Positive) |
0-+3%
|
||||||
| Module Efficiency STC | 20.31% | 20.59% | 20.86% | 21.13% | 21.41% | 21.68% | 21.96% |
| Operating Temperature Range | -40°C - 85°C | ||||||
| Maximum System Voltage | DC 1500V | ||||||
| Cell Type | Mono-crystalline Bifacial HJT,166x83mm | ||||||
| Cell number | 120(6x20)(Half-Cell) | ||||||
| Product Dimension(mm) | 1755*1038*30mm(69.09x40.87x1.18 inches) | ||||||
| Weight(kgs) | 23.5kg | ||||||
| Front Glass |
(F)2.0mm ultra clear embossed semi-tempered coated glass (B)2.0mm semi-tempered glass |
||||||
| Frame Type | Black,Anodized Aluminum Alloy | ||||||
| Protection Class | IP68 rated | ||||||
| Connector Type | MC4 | ||||||
| Output Cables |
4.0 mm²(0.006 inches²),Length:1100mm |
||||||
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.04%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.24%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.2%/℃ | Pallets per container | 13 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 936 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
