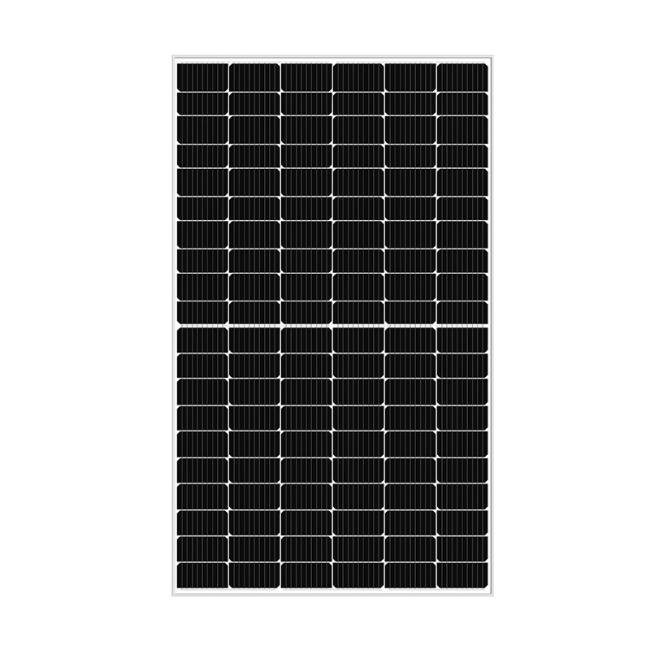

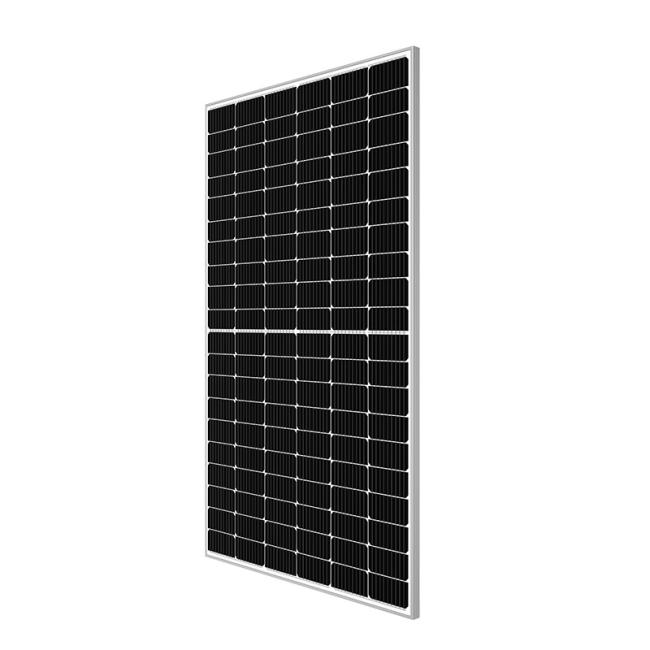

350W To 385w Household Solar Panels Waterproof Mono Solar Module 120 Cells
350W To 385w Household Solar Panels Waterproof Mono Solar Module 120 Cells
The 350W to 385W Household Solar Panels are waterproof mono solar modules featuring 120 high-efficiency cells. Designed for residential use, these panels provide reliable power output ranging from 350 to 385 watts. Their robust and weather-resistant construction ensures long-term durability, making them ideal for various climates. Easy to install and maintain, these solar panels are perfect for reducing household electricity costs and promoting sustainable energy use.
Product Features:
1) High photoelectric conversion efficiency:
The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, with the highest reaching 24%, which is currently the highest photoelectric conversion efficiency among all types of solar cells.
2)Low production cost:
The production cost of monocrystalline silicon solar cells is relatively low, and the technology is already very mature, so it has been widely used.
3)Long service life:
The service life of monocrystalline silicon solar cells is relatively long, generally reaching around 20 years, with the highest reaching 25 years.
4)Good low light performance:
Monocrystalline silicon solar cells can also perform well under low light conditions, making them suitable for use in solar lamps, solar lawn lamps, etc.
5)Strong radiation resistance:
Monocrystalline silicon solar cells have strong radiation resistance, which can resist radiation such as ultraviolet and infrared rays.
Product Details:
| Model | LS-350M | LS-355M | LS-360M | LS-365M | LS-370M | LS-375M | LS-380M | LS-385M |
| Maximum Power(Pmax) | 350W | 355W | 360W | 365W | 370W | 375W | 380W | 385W |
| Maximum Power Voltage(Vmp) | 33.7V | 33.8V | 33.9V | 34V | 34.1V | 34.2V | 34.3V | 34.4V |
| Maximum Power Current(Imp) | 10.39A | 10.51A | 10.62A | 10.74A | 10.85A | 10.97A | 11.08A | 11.2A |
| Open-Circuit Voltage(Voc) | 41V | 41.1V | 41.2V | 41.3V | 41.4V | 41.5V | 41.6V | 41.7V |
| Short-Circuit Current(Isc) | 11.03A | 11.07A | 11.18A | 11.3A | 11.41A | 11.53A | 11.65A | 11.71A |
| Power Tolerance(Positive) |
0——+3%
|
|||||||
| Module Efficiency STC | 19.21% | 19.49% | 19.76% | 20.04% | 20.31% | 20.59% | 20.86% | 21.13% |
| Operating Temperature Range | -40°C - 85°C | |||||||
| Maximum System Voltage | 1500V DC-(H) | |||||||
| Cell Type | Monocrystalline | |||||||
| Cell number | 120(6x20)(Half-Cell) | |||||||
| Product Dimension(mm) | 1755*1038*30mm(69.09*40.86*1.18inches) | |||||||
| Weight(kgs) | 19.5kg | |||||||
| Front Glass | 3.2mm High Transmission Tempered Glass(0.13inches) | |||||||
| Frame Type | Black,Anodized Aluminum Alloy | |||||||
| Protection Class | IP68 | |||||||

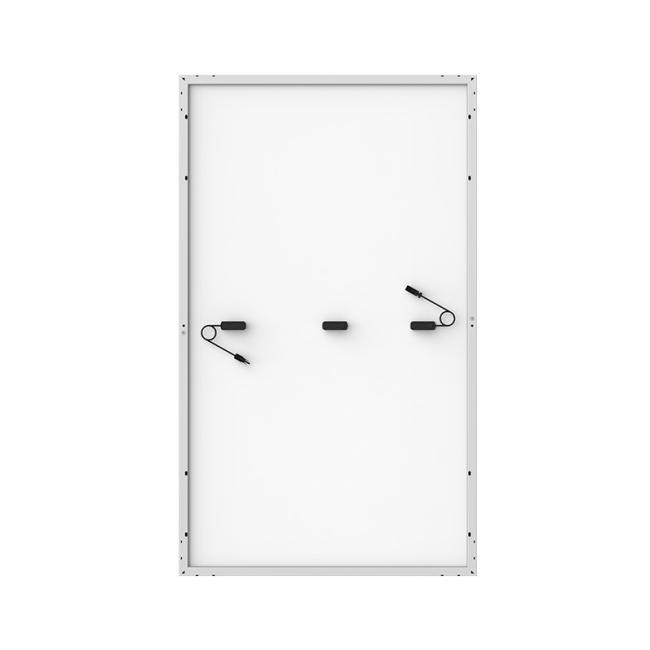

| Connector Type | MC4 | |||||||
| Output Cables | 4 mm²,Length:1100mm | |||||||
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.050%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.29%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.34%/℃ | Pallets per container | 13 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 936 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
A:We always prepare a sample production before bulk production and have a final strict inspection before shipment.
