Compact Full Electric Pallet Truck With 1.5ton Capacity Jack walkie type

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: 5-20 work days as per order volume
Brand: Yanming
Product Description

Compact Electric Pallet Truck Load 1.5ton Lithium Battery

Features

1) The fork is integrally stamped, which is light and has a higher load;
2) ​Optional floating balance wheel, the car walks more stably;
3) Integral rocker arm design, stable driving and high structural strength;
4) The whole vehicle has a compact structure, integrated electrical layout, and easy maintenance.

Technical Parameters



Model WCT15QA
Load capacity 1500kg
Rear Wheel Base 388/518mm
Max.lifting height 190mm
Lowered fork Height 75/85mm
Overall length 1665mm
Overall width 550/680mm
Travel speed 4/4.2 km/h
Gradient,Laden/unladen 5/15%
Drive motor 750w
Lift motor 850w
Battery Lithium 24V 20Ah/30Ah

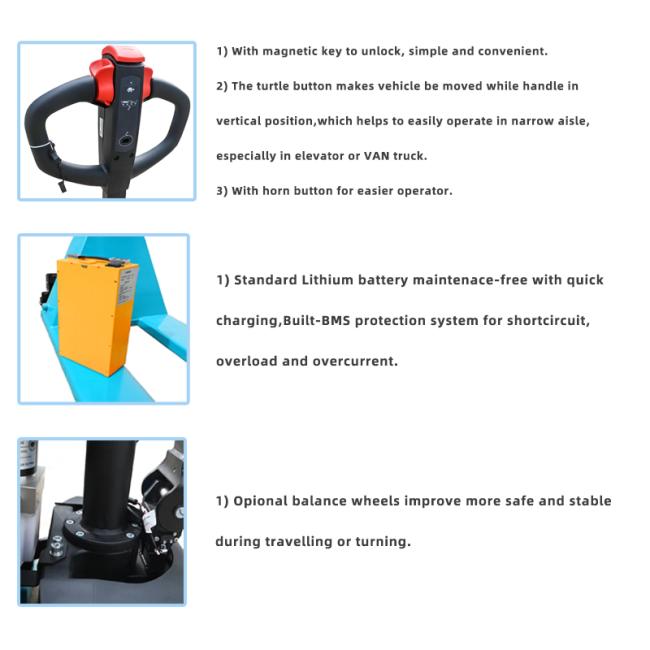

​Structure details



Here are some key features and benefits of an electric pallet truck with a lithium battery:

1.Efficient and Versatile: Electric pallet trucks are designed to efficiently move heavy loads on pallets. They can navigate tight spaces, narrow aisles, and crowded areas with ease, making them highly versatile in warehouse environments.

2.Powered by a Lithium Battery: Lithium-ion batteries are commonly used in electric pallet trucks due to their high energy density, longer cycle life, and fast charging capabilities. They provide consistent power for extended periods, allowing the pallet truck to operate throughout the workday without requiring frequent battery changes or recharges.

3.Zero Emissions: Electric pallet trucks with lithium batteries are environmentally friendly as they produce zero emissions during operation. This makes them suitable for indoor use and helps reduce the carbon footprint of warehouses or distribution centers.

4.Lower Maintenance Costs: Compared to traditional internal combustion engine-powered pallet trucks, electric pallet trucks with lithium batteries have lower maintenance costs. They require less frequent maintenance, have fewer moving parts, and do not require oil changes or fuel refills.
