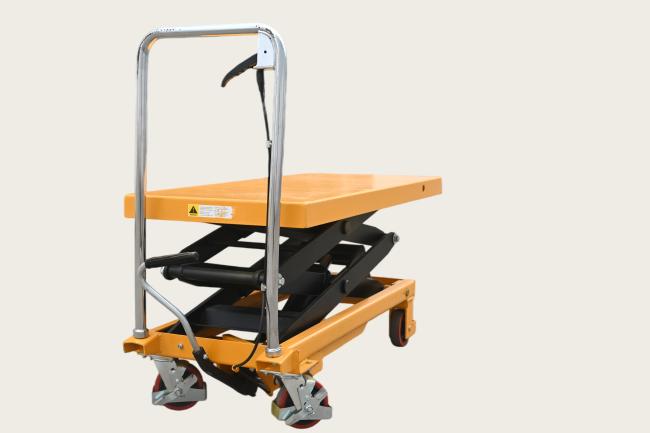

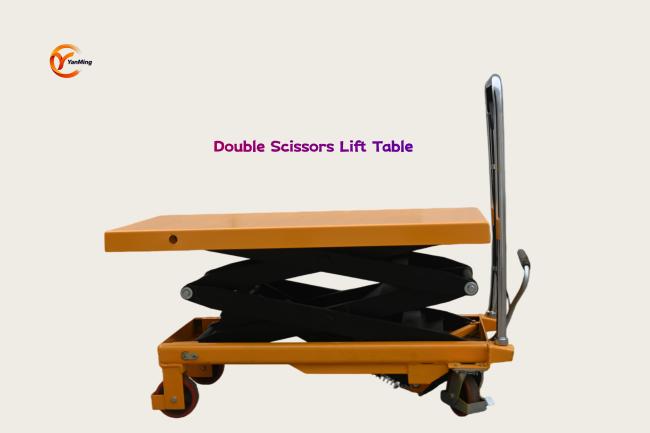

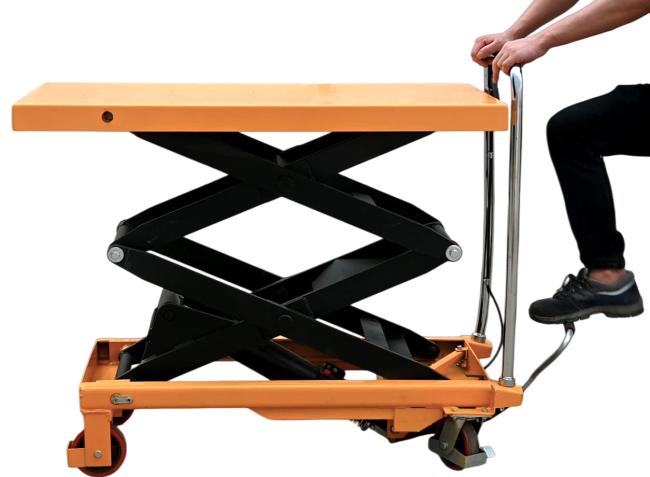

OEM Single Adjustable Scissor Lift Table , Small Hydraulic Lifting Platform 1000kg hydraulic scissor lift trolley
Product Description
Hydraulic Lift Table for Work Platforms, designed to handle a maximum load of 1000kg.
1. Incorporated with an overload protection function, ensuring safe operation even under heavy loads.
2. The lift table boasts reliable hydraulic performance, guaranteeing a long service life and consistent functionality.
3. The ascending and descending control device is user-friendly, eliminating the need to turn a fixed handle for operation.
4. The spacing between moving parts adheres to CE requirements, preventing finger pinching accidents and prioritizing safety.
5. Equipped with a wheel guard bracket and an emergency brake, the rear wheel is designed to halt wheel rotation promptly in emergency situations.
Experience efficient and secure lifting operations with our Hydraulic Lift Table, built with advanced safety features and durable hydraulic components to meet your work platform needs.
.
| Model | ASPA150 | ASPA300/500 | ASPA1000 | ASPA1500 | |
| Load capacity | kg | 150 | 300/500 | 1000 | 1500 |
| Max.lift height | mm | 740 | 900 | 1000 | 1000 |
| Min.height of table | mm | 225 | 340 | 420 | 420 |
| Lifting height | mm | 515 | 560 | 580 | 580 |
| Table size | mm | 740*450*35 | 855*500*50 | 1000*510*55 | 1220*610*60 |
| Foot pedal cycles to max height | <=25 | <=32/<=45 | <=55 | <=70 | |
| Net weight | kg | 44 | 82/87 | 115 | 135 |
| Carton size | mm | 860*485*300 | 985*510*350 | 1170*520*420 | 1420*625*420 |
| Total height | mm | 922 | 970 | 996 | 962 |
| Tyre size | mm | φ100 | φ127 | φ150 | φ150 |
