Integrated Weighing Scale Electric Pallet Truck Ensuring 2 Ton Capacity

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: 5-20 work days as per order volume
Brand: Yanming
Product Description

Improve Efficiency and Accuracy Electric Pallet Truck with The Integrated Weighing Scale, Ensuring 2-To

Product Description


Product Description

Loading Capacity 2 Ton Material Weighting Equipment electric pallet truck with Scale

  1. The electric pallet truck with an integrated weighing scale, commonly referred to as an electric pallet jack with a built-in weighing system, is an essential material handling device used for the transportation and weighing of loads within warehouses or industrial settings. It combines the functionalities of an electric pallet jack, primarily designed for lifting and transporting pallets, with the convenience of an integrated weighing scale.

Product Features
  1. This electric pallet truck boasts a maximum load capacity of 2000kg. It offers electric lifting and lowering capabilities, as well as forward and backward movement. Its robust chassis ensures reliability, and the truck is equipped with various weighing functions. The high-definition display provides clear visibility, and its maintenance-friendly design simplifies upkeep. The ergonomics and smart tiller design enhance operator comfort, while a built-in rechargeable battery powers the truck.

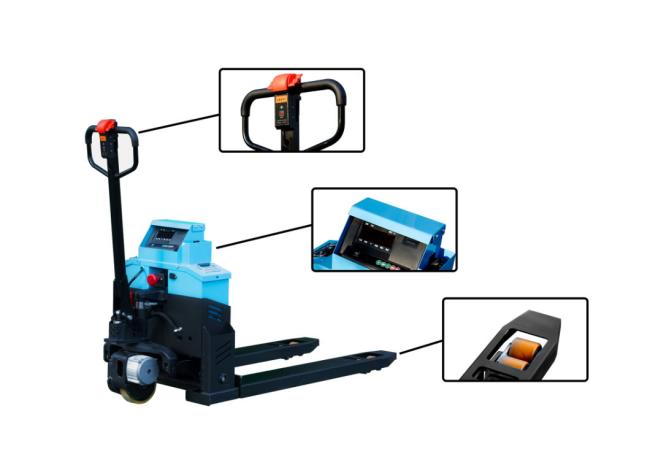

Improve Efficiency and Accuracy Electric Pallet Truck with The Integrated Weighing Scale, Ensuring 2-Ton Load Handling and 500g Precision


Application Scenario
  1. In warehouses, distribution centers, wholesale operations, recycling plants, and various industrial settings, electric pallet trucks equipped with weighing scales are commonly utilized. These versatile devices facilitate accurate weight measurement of loads, effectively streamlining operations by integrating the tasks of lifting, transporting, and weighing into a single equipment. This integration saves operators valuable time and effort, contributing to increased operational efficiency.

Product Specification



Specification Electric pallet truck with weighing scale
Electric pallet truck  Load capacity  2000KG
Load centre distance 600mm
Self weight 175KG(incl. battery and scale system)
Tyre type solid PU
Lift height  200mm
Ground clearance 5mm
Overall length 1710mm
Fork distance  550 or 685mm
Turning radius 1400mm
Travel speed (Laden/unladen) 4.5/5 Km/h
Gradeability  4%
Drive motor 850W
Battery 48V20Ah(lead-acid)/48V20(40)Ah(lithium)
Electronic weighing
scale system
Weighing capacity 2000KG
Function Weigh, tare, Accumulation, zero setting
Accuracy 500g (high precision can be customized)
Display LCD high-definition backlit display
Unit KG (kilogram, gram, pound)
Operating temperature 0-40ºC
