Hot Dipped Galvanized Steel Pipe Square /Rectangular Pipe/Tube 20*20*1.5mm
Price:
$950.00/tons 1-4 tons
MOQ:
Negotiable
Delivery Time:
7 Day
Product Description
Product Description
|
Product Name
|
galvanized steel pipe/iron rectangular tube
|
|
|
|
|||
|
Standard
|
ASTM, DIN, GB, JIS, ASTM A513-2007, DIN EN 10208-1-1998, DIN EN 10216-1-2004, GB/T 3094-2000, JIS G3465-2006, JIS G3466
|
|
|
|
|||
|
Material
|
Q195 / Q215 / Q235 / Q345 / S235JR / GR.B-D/STK500
|
|
|
|
|||
|
Size
|
Length :1m --12m,
Diemeter :21.5--406.4 mm, Thickness :0.6mm -- 20mm |
|
|
|
|||
|
Shape
|
Round/Square/Rectangular
|
|
|
|
|||
|
Yield Strength
|
360-380Mpa
|
|
|
|
|||
|
Tensile Strength
|
560-580Mpa
|
|
|
|
|||
|
Bend Test
|
Qualified
|
|
|
|
|||
|
Impact Value
|
V-notch
|
|
|
|
|||
|
Usage /Application
|
Building industry machinery/Construction of greenhouses
|
|
|
|
|||
|
Price terms
|
FOB,CRF,CIF,EXW all acceptable
|
|
|
|
|||
|
Samples
|
Free samples are provided but the fright is borne by the buyer
|
|
|
|
|||

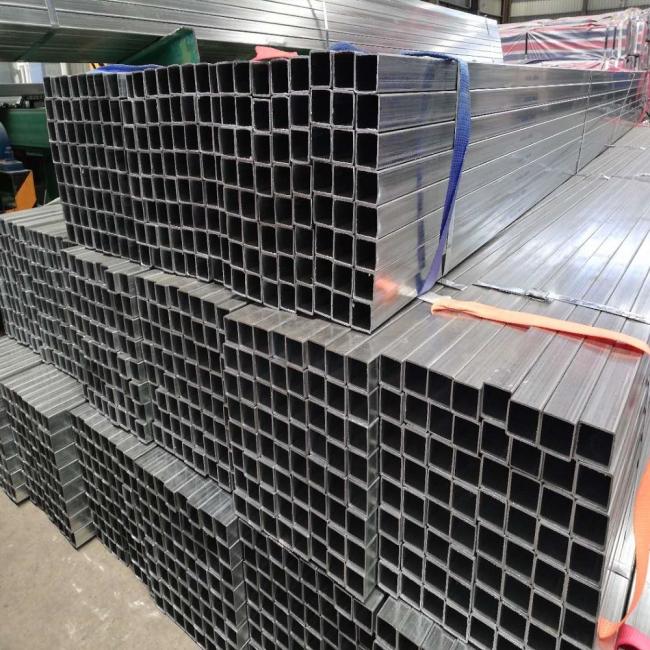

Product Show
|
Regular Sizes of Galvanized Steel Pipe
|
|
|
|
|
|
|||||
|
DN
|
NB
|
OD (mm)
|
WT (mm)
|
Pcs/Bundle
|
Regular Length:
5.7m, 5.8m, 6.0m, 6.4m.
Besides, we can make to order for you according to your requested length. |
|||||
|
15
|
1/2"
|
19mm-21.3mm
|
1.5mm-3.0mm
|
217
|
|
|||||
|
20
|
3/4"
|
25mm-26.9mm
|
1.5mm-3.0mm
|
169
|
|
|||||
|
25
|
1"
|
32mm-33.7mm
|
1.5mm-3.0mm
|
127
|
|
|||||
|
32
|
1.1/4"
|
40mm-42.4mm
|
1.5mm-4.0mm
|
91
|
|
|||||
|
40
|
1.1/2"
|
47mm-48.3mm
|
1.5mm-4.0mm
|
91
|
|
|||||
|
50
|
2"
|
58mm-60.3mm
|
1.5mm-4.0mm
|
61
|
|
|||||
|
65
|
2.1/2"
|
73mm-76.1mm
|
1.5mm-4.0mm
|
37
|
|
|||||
|
80
|
3"
|
87mm-88.9mm
|
1.5mm-9.5mm
|
37
|
|
|||||
|
100
|
4"
|
113mm-114.3mm
|
2.0mm-9.5mm
|
19
|
|
|||||
|
125
|
5"
|
140mm-141.3mm
|
3.0mm-9.5mm
|
19
|
|
|||||
|
150
|
6"
|
165mm-168.3mm
|
3.0mm-12.0mm
|
19
|
|
|||||
|
200
|
8"
|
219.1
|
3.2mm-12.0mm
|
7
|
|
|||||
|
250
|
10"
|
273.0
|
3.2mm-12.0mm
|
5 or 1
|
|
|||||
|
300
|
12"
|
323.9mm-325mm
|
6.0mm-15mm
|
3 or 1
|
|
|||||
|
350
|
14"
|
355mm-355.6mm
|
8.0mm-15mm
|
1
|
|
|||||
|
400
|
16"
|
406.4mm
|
8.0mm-20mm
|
1
|
|
|||||
|
450
|
18"
|
457mm
|
9.0mm-23mm
|
1
|
|
|||||
|
500
|
20"
|
508mm
|
9.0mm-23mm
|
1
|
|
|||||
|
550
|
22"
|
558.8mm
|
9.0mm-23mm
|
1
|
|
|||||
|
600
|
24"
|
609.6mm
|
9.0mm-23mm
|
1
|
|
|||||
|
Square Hollow Section (SHS)
|
WT(mm)
|
Rectangular Hollow Section(RHS)
|
WT(mm)
|
|
16*16
|
0.8-1.5
|
20*40
|
0.8-2.0
|
|
19*19
|
0.8-2.0
|
25*50
|
0.8-2.0
|
|
20*20
|
0.8-2.0
|
30*40
|
0.8-2.0
|
|
25*25
|
0.8-2.0
|
30*50
|
0.8-2.0
|
|
30*30
|
0.8-2.0
|
37*57
|
0.8-2.0
|
|
32*32
|
0.8-2.0
|
40*60
|
0.8-2.0
|
|
35*35
|
0.8-2.0
|
37*77
|
0.8-2.0
|
|
38*38
|
0.8-2.0
|
25*75
|
1.0-2.0
|
|
40*40
|
0.8-2.0
|
40*80
|
1.0-2.2
|
|
50*50
|
0.8-2.0
|
50*100
|
1.0-2.2
|
|
60*60
|
1.0-2.2
|
50*75
|
1.0-2.2
|
|
80*80
|
1.0-2.2
|
38*75
|
1.0-2.2
|
|
100*100
|
1.0-2.3
|
50*75
|
1.0-2.2
|
Factory Equipment

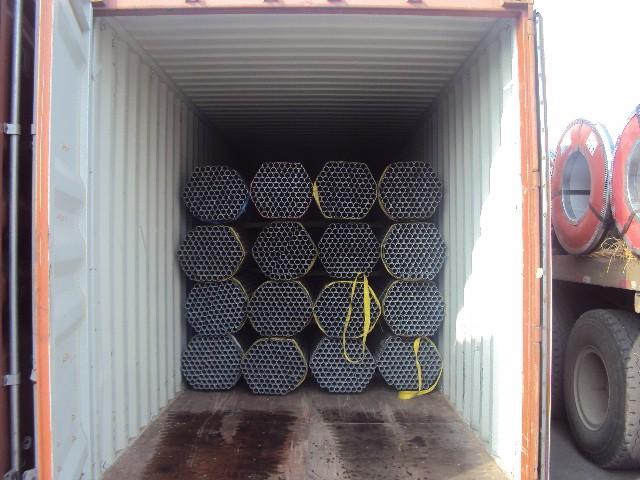

Packaging&Shipping
1. Professional packing
2. Unique packaging
3. Delivery to the port
4. Professional transportation
5. Suitable carton size
6. Complete packing
Application
Certifications
FAQ
Q1. Where is your factory ?
A1: Our company’s processing center is located in Shangdong, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
A1: Our company’s processing center is located in Shangdong, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
