Eaton Micro Modular Data Center Power Cube with 25-60kW Cooling Capacity 21.5-Inch FHD Touch Screen and Three Phase UPS System
Price:
$5,999
MOQ:
1
Delivery Time:
Negotiable
Brand:
Eaton
Product Description
Specification
Micro-module System | Overall Dimension (L x W x H) | L x [3400/3600] x [2523/2723] mm, L ≤ 5m | ||||||||||
Cabinet Quantity | 10–48 units | |||||||||||
Sealing Method | Cold/hot aisle containment | |||||||||||
Installation Method | Horizontal floor or raised floor | |||||||||||
Cabinet & Aisle Containment Subsystem | Cabinet Dimension (W x D x H) | [600/800] x [1100/1200] x [2000/2200] mm | ||||||||||
Skylight Type | Fixed/flip skylight (support one-key reset) | |||||||||||
Skylight Width | 300/600/800mm | |||||||||||
End Door Type | Automatic sliding door, manual sliding door/swing door | |||||||||||
Lighting Component | Standard intelligent aisle lighting | |||||||||||
Cabling Component | Separate trunking for power and signal cables configured on top of the cabinet | |||||||||||
Power Supply & Distribution Subsystem | Integrated UPS | - Rated Capacity: 125kVA/125kW, Power Module: 25kW, Max. 5+1 redundancy - 48 circuits for IT power distribution, 6 circuits for air conditioning power distribution, 1 circuit for lighting/environment monitoring power distribution - Optional ATS/dual-source/single-source input - Support main/branch circuit power parameter monitoring - Class C lightning protection - Dimension: W600 x D1100 x H2000 mm, support heightening and deepening to align with cabinets | ||||||||||
Smart Busway | - Rated Current: 160/250/400/630A - Shell: Al-Mg alloy profile, Conductor: High-purity electrolytic copper - Optional ceiling-mounted or cabinet-top installation | |||||||||||
Rack PDU | Optional basic type, metered type or port-controlled type | |||||||||||
Cooling Subsystem | Air Supply Method | Horizontal row-based air supply | ||||||||||
Cooling Method | Air-cooled, water-cooled, chilled water | |||||||||||
Cooling Capacity | 25-60kW | |||||||||||
Indoor Unit Dimension (W x D x H) | [300/600] x 1100 x 2000 mm, support heightening and deepening to align with cabinets | |||||||||||
Fluoride Pump | Optional | |||||||||||
Centralized Condenser | Optional | |||||||||||
Monitoring Subsystem | Micro-module Local Display | 21.5-inch FHD touch screen | ||||||||||
Environment & Equipment Monitoring Collector | 16×RS485 ports, 12×DI, 4×DO, 2×LAN, dual power supply | |||||||||||
Access Control & Security | Support combined authentication methods including password, card swiping, fingerprint and face recognition | |||||||||||
Alarm Method | Support WEB interface, email, SMS, voice, audible and visual alarm, WeChat and other notification methods | |||||||||||
Mobile APP | Supported | |||||||||||
U-position Asset Management | Optional | |||||||||||
Northbound SNMP Interface | Free and open | |||||||||||

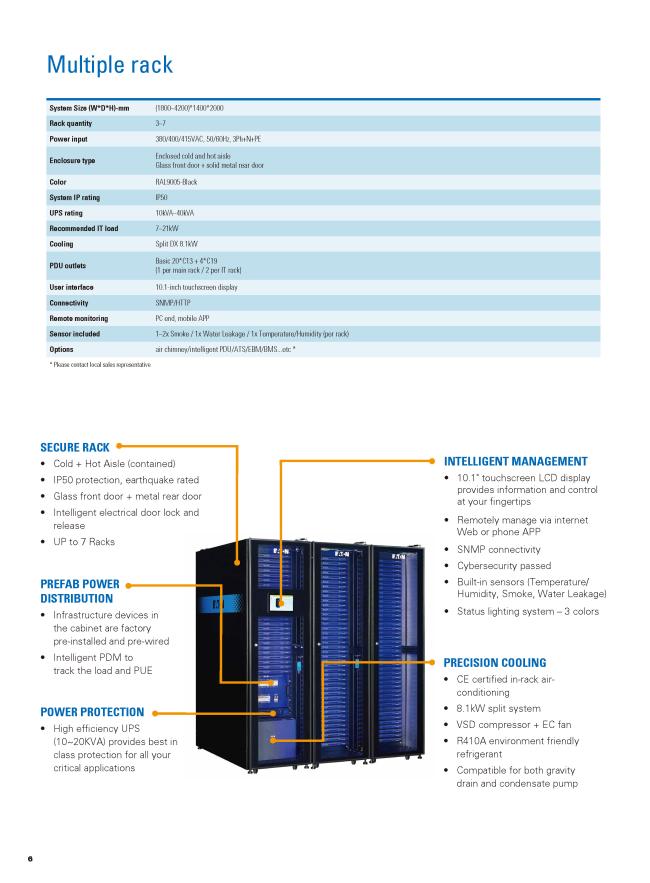

Product Description

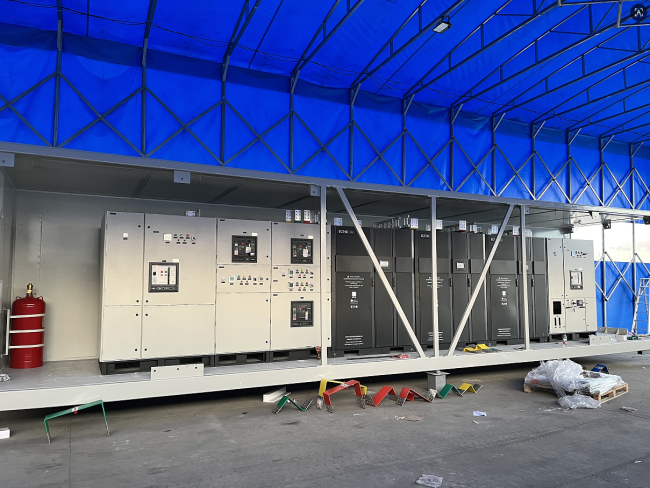

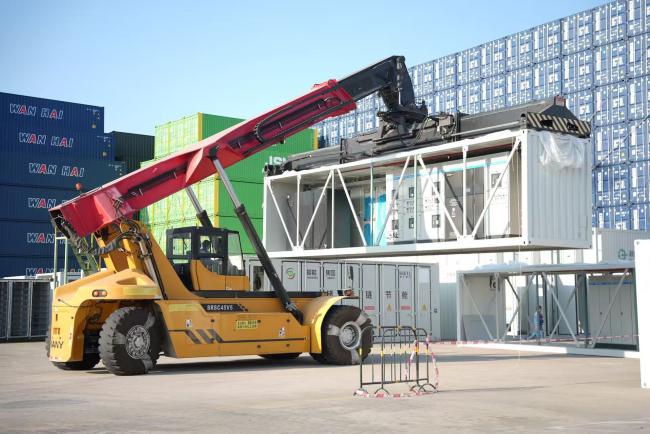

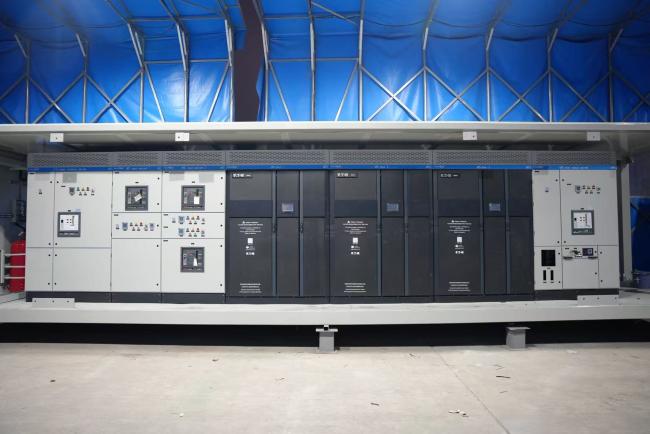

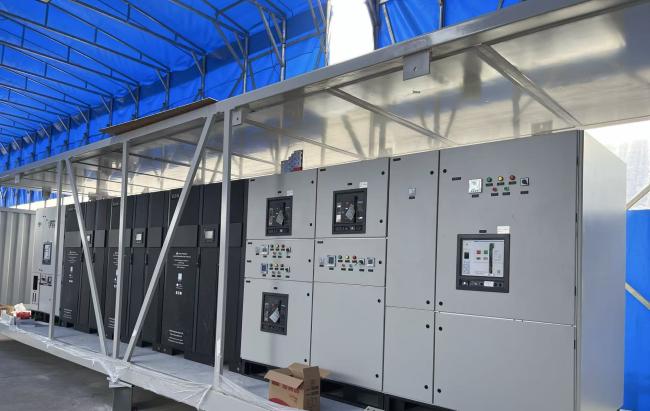

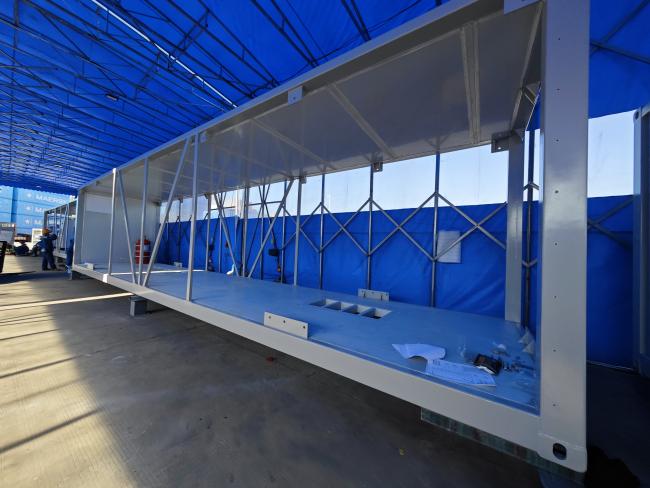

Product packaging
Company Profile
COMPANY PROFILE:

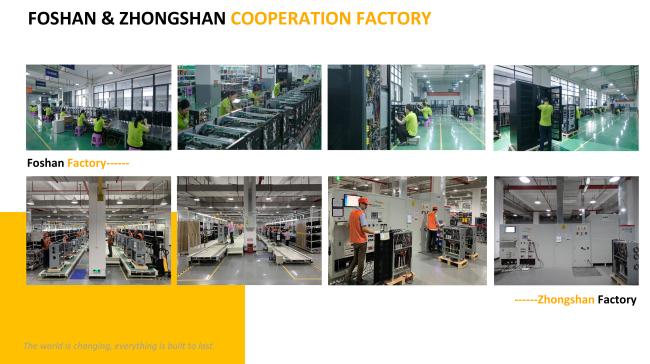

Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
