Reinforced Tracheostomy Tube With Cuffed Inflatable Balloon Anaesthesia Emergency Airway
Cuffed Disposable Reinforced Tracheostomy Tube Anaesthesia Products
A simple tracheostomy tube consists of outer cannula, a obturator , balloon, connector and tie band. Obturator is used guide outer cannula in right position during inserting. Inflatable balloon use to remains placement. Fasten the outer part of tracheal incision by tie band.
Sizes: 5.0mm-9.0mm
Type: Pipe,Drainage Tubes & Containers
Properties: Medical Polymer Materials & Products
Place of Origin: Shanghai,China (Mainland)
Brand Name: EasyThru or OEM
Features:
1. Made of non-toxic, medical-grade PVC
2. Full-length radio opaque line
Tracheostomy Tube Cuffed
Description:
1. Designed to establish and mantain an airway in case of an emgency
2. Cuff ensures effective sealing and atraumatic intubation and extubation
3. Rounded and smooth tip of the obturator minimizes tissue injury during intubation
4. Blister package or peelable pouch as per request
5. Sterile by EO, single use
6. Available with CE and ISO certificates
Size:
| Size | Tube I.D | Tube O.D | Tube Length A Part ±5mm | Length B Part±5mm | (A+B+C) | Balloon I.D.(after inflation)mm±15%) |
| overall length | ||||||
| mm | ||||||
| 3 | 3 | 4.2 | 28 | 10 | 55 | 12 |
| 3.5 | 3.5 | 4.9 | 28 | 10 | 55 | 12 |
| 4 | 4 | 5.5 | 28 | 10 | 55 | 14 |
| 4.5 | 4.5 | 6.2 | 28 | 10 | 55 | 14 |
| 5 | 5 | 6.9 | 30 | 10 | 65 | 16 |
| 5.5 | 5.5 | 7.5 | 30 | 10 | 70 | 16 |
| 6 | 6 | 8.2 | 30 | 10 | 70 | 18 |
| 6.5 | 6.5 | 8.7 | 31 | 12 | 80 | 18 |
| 7 | 7 | 9.3 | 31 | 12 | 86 | 20 |
| 7.5 | 7.5 | 10 | 36 | 16 | 88 | 20 |
| 8 | 8 | 10.7 | 36 | 16 | 92 | 22 |
| 8.5 | 8.5 | 11.3 | 36 | 16 | 95 | 22 |
| 9 | 9 | 12 | 36 | 16 | 98 | 22 |
| 9.5 | 9.5 | 12.7 | 36 | 16 | 98 | 22 |
| 10 | 10 | 13.3 | 36 | 16 | 98 | 22 |
| Tolerance requirement:I.D≤ 6.0 +0.15mm O.D≤ 8.2 +0.15mm | ||||||
| I.D≥ 6.5 +0.20mm O.D≥ 8.7 +0.20mm | ||||||

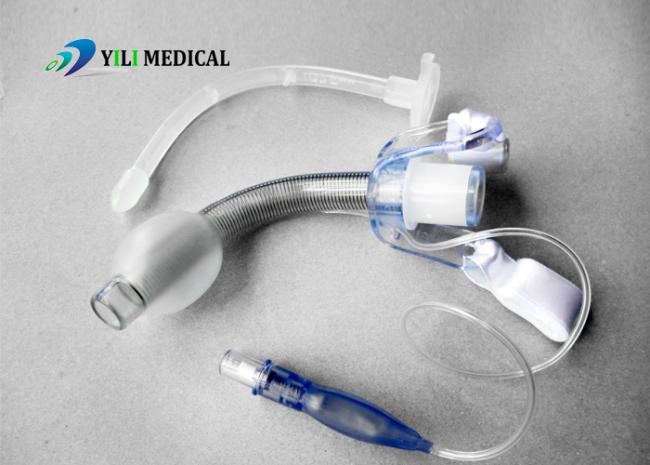

Product photo:
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 2-4 weeks for order quantity more than10,000 pcs
Q3. Do you have any MOQ limit for this item?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for medical consumables?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on package?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
