High load HKT300 Series AGV Drive Wheel with 350mm Outside Diameter

Product Description:

AGV Drive Wheel is an innovative product designed for AGV applications. It is equipped with a high-power 7500W motor, a robust polyurethane bearing with a maximum loading capacity of 2500kg, and a PU rubber wheel material for superior performance. The wheel hub is designed with a diameter of 300mm, making it suitable for AGV hubs and gearboxes. In addition, the AGV Steering Drive Wheel and AGV Wheel Hub Gearbox are designed for precise steering and drive control. The AGV Drive Wheel is the perfect solution for AGV applications, offering robust and reliable performance.

Features:

1.Precision Manufacturing: The parts of hub reducers are manufactured to exact specifications to enable them to link up without any issues, thus decreasing wear and increasing lifespan.

2.Sealed and Lubricated for Life: A large number of hub reducers come pre-lubricated and sealed to shield the inner components from dirt or liquids, which lowers the need for maintenance.

3.Customizable Ratios: Certain hub reducers permit for the fine-tuning of speed and power using adjustable gear ratios, which optimizes them for different AGV functions.

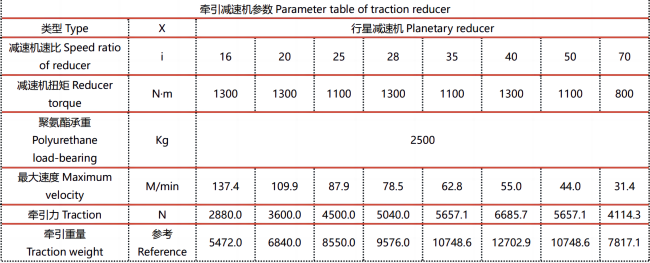

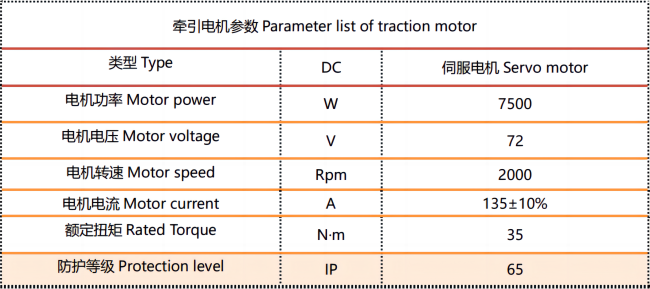

Technical Parameters:
