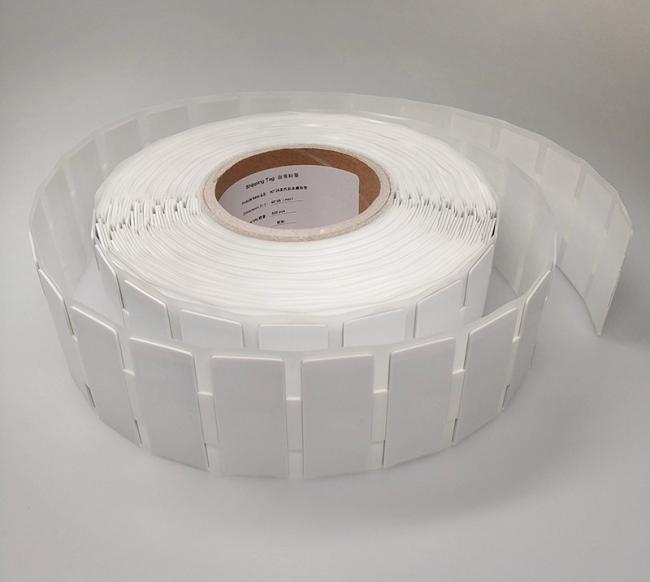

The HC-FA7030 is a flexible printable anti-metal tag that compatible with EPC, C1G2 and ISO 18000-6C standards. It is suitable for use in environments rich in metals and liquids. It can be encapsulated as any type of printed label, bar-code or graphic label. The thin and light paper-like shape allows it to be easily attached to curved objects such as cylinder bottles, pipes, metal containers and fixed assets. It is widely used in product certification, asset tracking, logistics tracking, anti

counterfeiting of valuables and medical asset management, etc., and improves operational efficiency and inventory management for manufacturers and retailers.

Datasheet
Protocol	EPC Class 1 Gen 2 (ISO 18000-6C) Passive UHF
Frequency	905-925MHz
Chip Type	Impinj Monza R6-P
Memory	32-bit User Memory
	48-bit TID
	128-bits EPC
Working Temperature	-40°F to +185°F (-40°C to + 85°C)
Weight (Roll)	0.56 kg (500 pcs)
Size/Error(mm)	70(+/- 1) x 30(+/- 0.8) x 1.2(+/- 0.1)
R angle size	1.5(+/- 0.2)mm
Printable	Yes
Reading distance on metal surface	0-8m
Reading distance on plastic surface	3.5m
Reading distance on liquid surface	9m
Surface Material	PET
Color	White
Glue	High strength adhesive
Standard Packing	500pcs/roll
Roll Reel Size	3 in (76.2 mm)
Outer Diameter	8 in (203 mm)
Support Printer	Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5...
