30W 20W ISO9001-2008 Certified Flange RF Power Resistor and Thermal Resistor
Price:
Negotiable
MOQ:
100
Delivery Time:
Negotiable
Brand:
BONENS
Product Description
Product Description

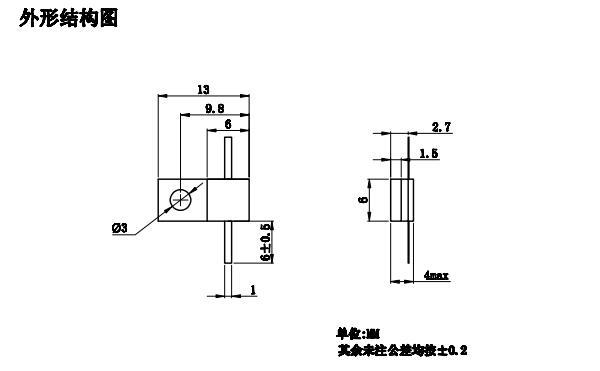

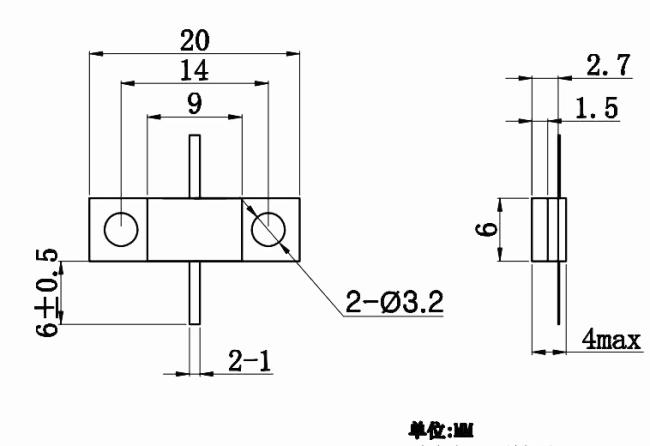

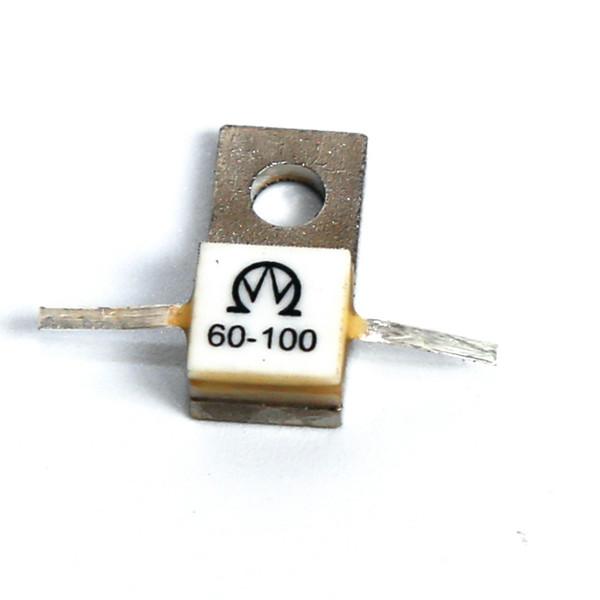

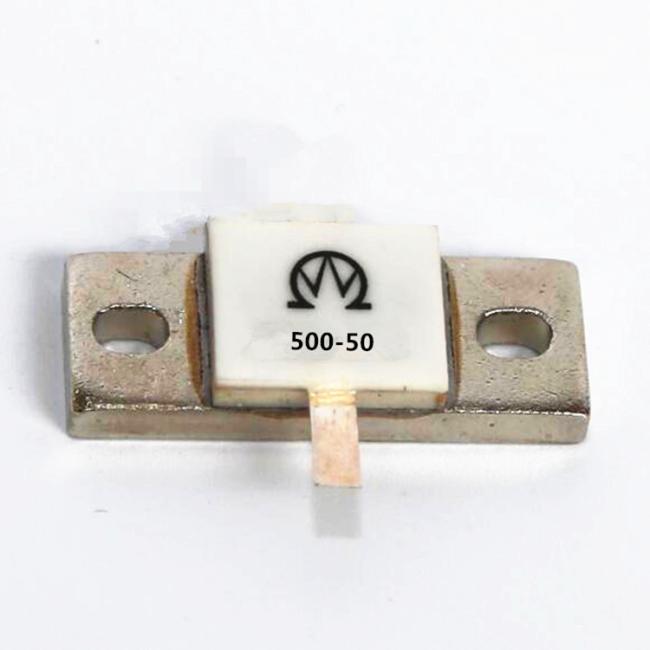

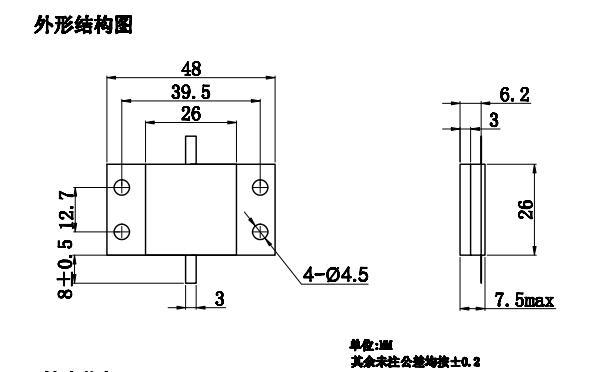

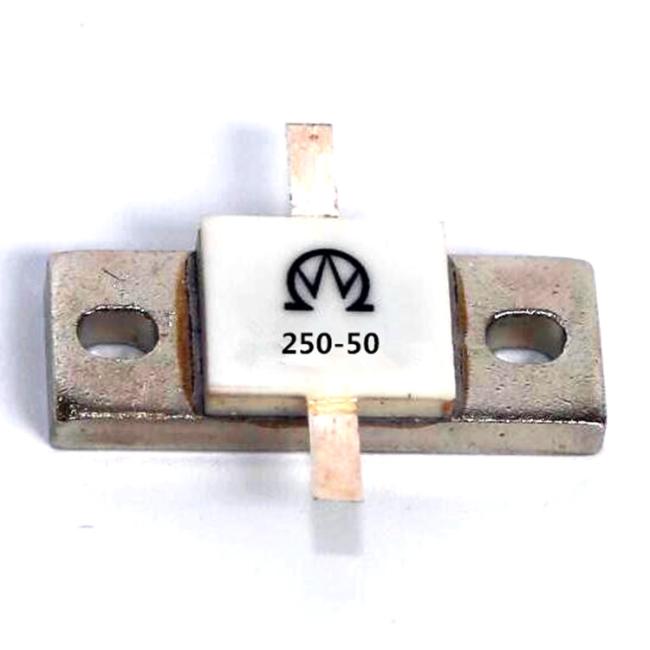

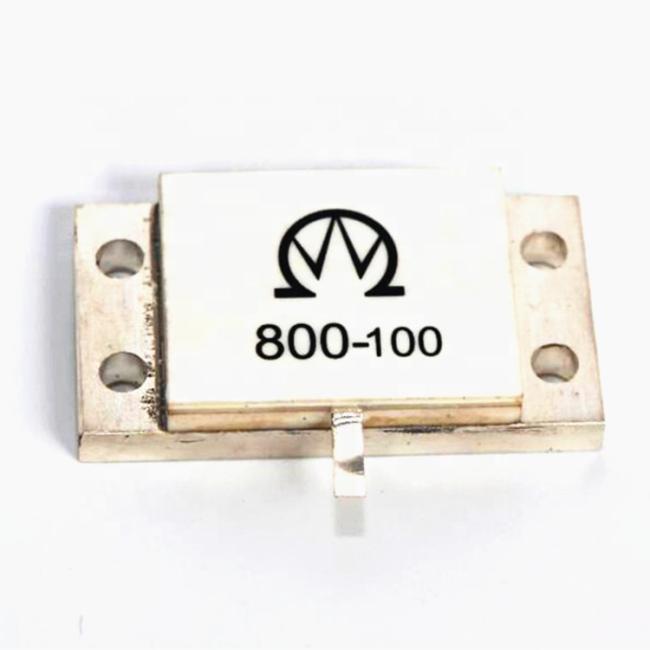

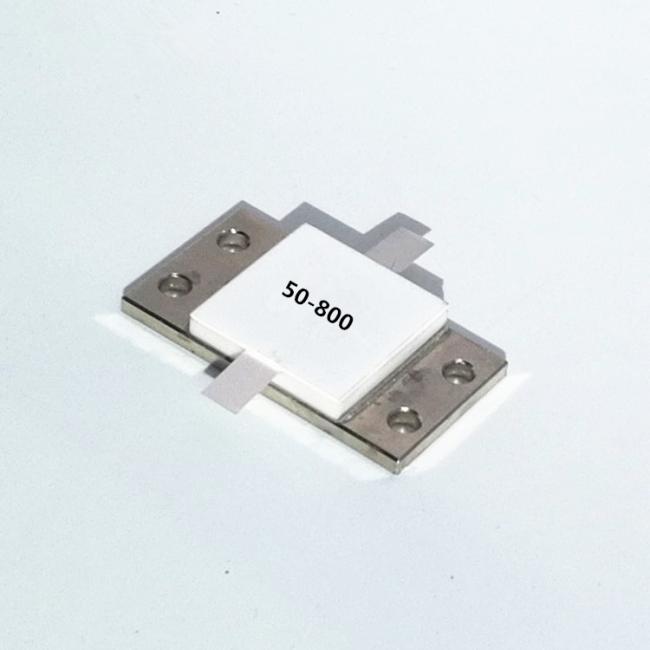

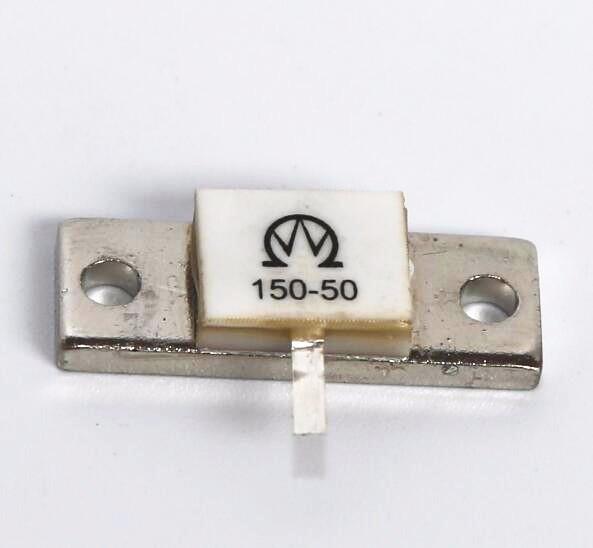

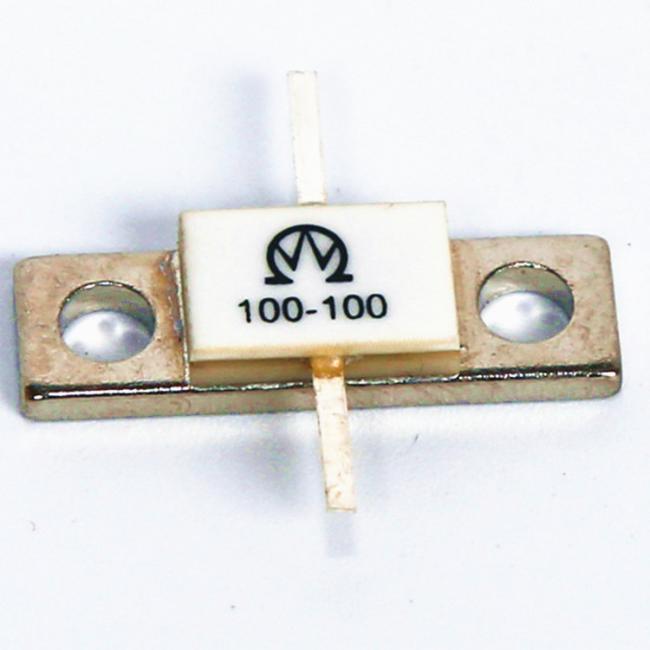

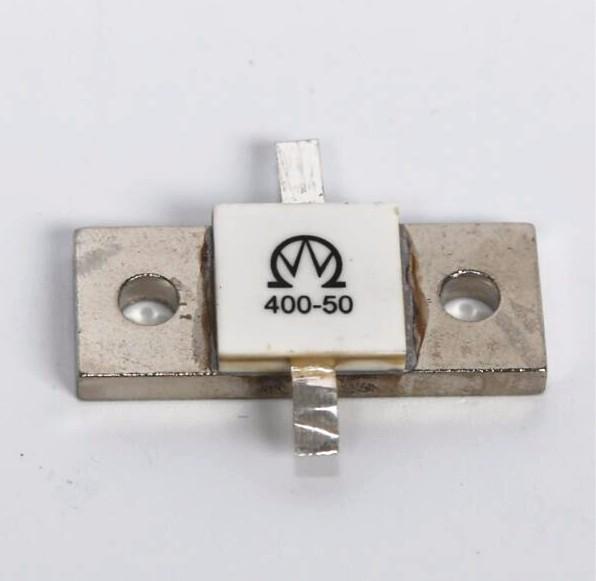

1000W 800W 500W 250W 100W 60W 30W 20W flange resistor 50 ohm 100 ohm RF resistor
technical parameter
Electrical Characteristics: | ||||||
Range of nominal resistance | 1 ~500Ω | |||||
Resistance tolerance | ±5% | |||||
Frequency range | 0~2GHz | |||||
Standing wave ratio | 1.2~1.3 | |||||
Insulation resistance | ≥ 1GΩ | |||||
Withstand voltage | 500V/1 mm (Substrate thickness) | |||||
Environment Characteristics: | ||||||
Rated power | 1~1000W (70°C) | |||||
Temperature range | -55°C~+165°C | |||||
TCR | ±300×10-6/°C | |||||
Temperature shock (-55°C/+125°C, 3 times) | ΔR≤±5%R | |||||
Moisture proof (GJB306A-96-Method106) | ΔR≤±5%R | |||||
Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±3%R, No mechanical damage | |||||
Test at low temperature (-55°C, 24h) | ΔR≤±5%R | |||||
Load life (96) | ΔR≤±5% | |||||
Collision | ΔR≤±3%R | |||||
Physical Characteristics: | ||||||
Terminal strength(10N,5S) | No loose and fall off | |||||
Solderability(240℃,3s) | Tin layer covering area of 95% | |||||

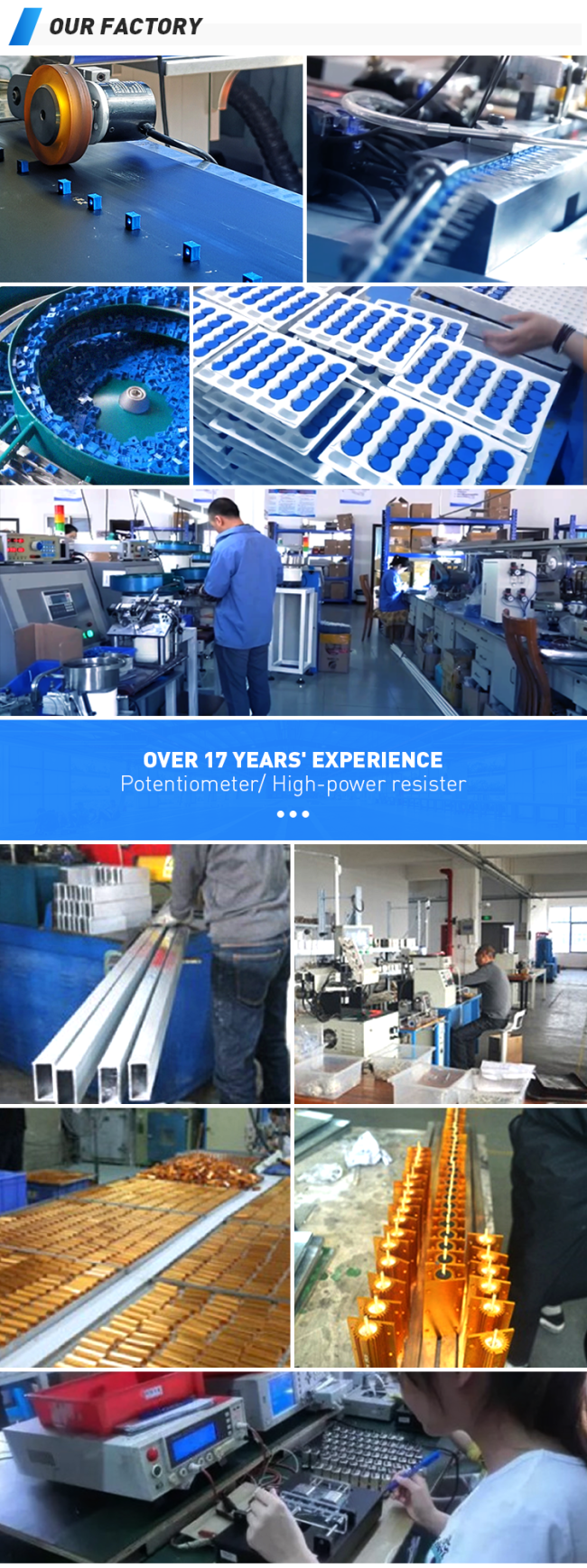

Company Profile
