5000W High Power Wirewound Braking Resistor with Painted Ceramic Tube and Customizable Size
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
BONENS
Product Description

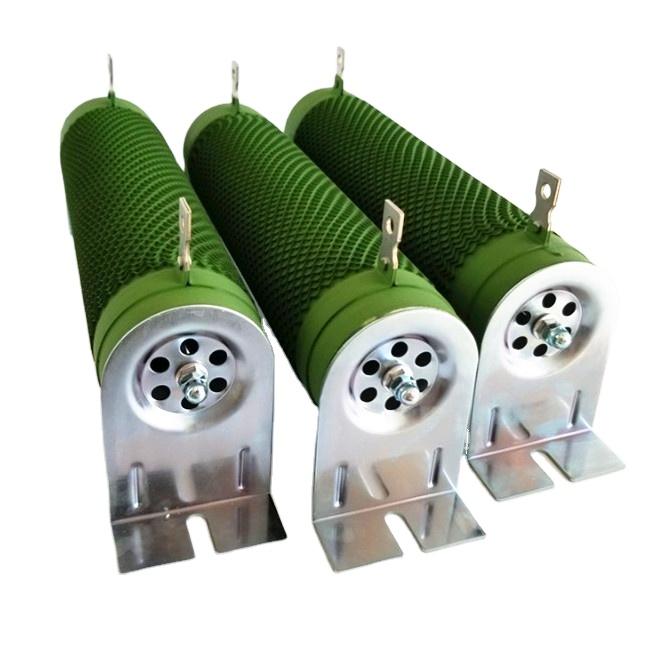

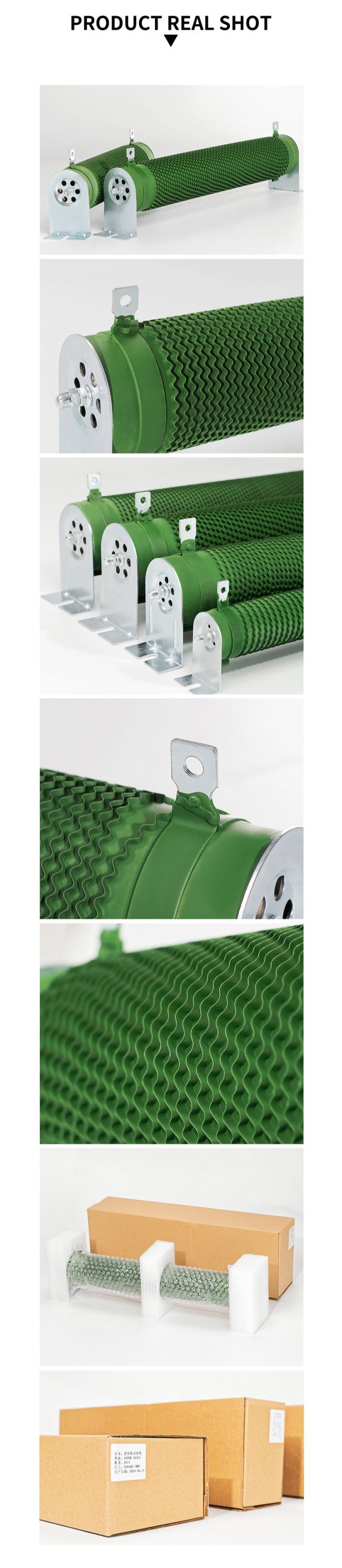

Products Show

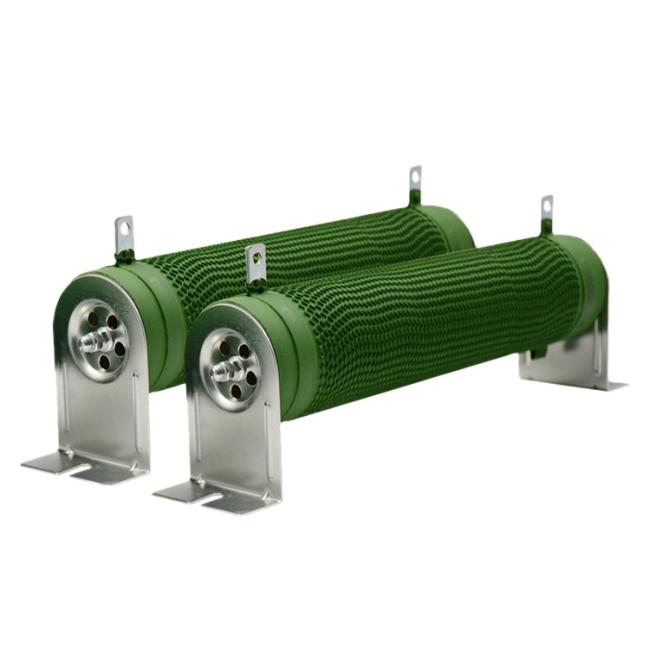

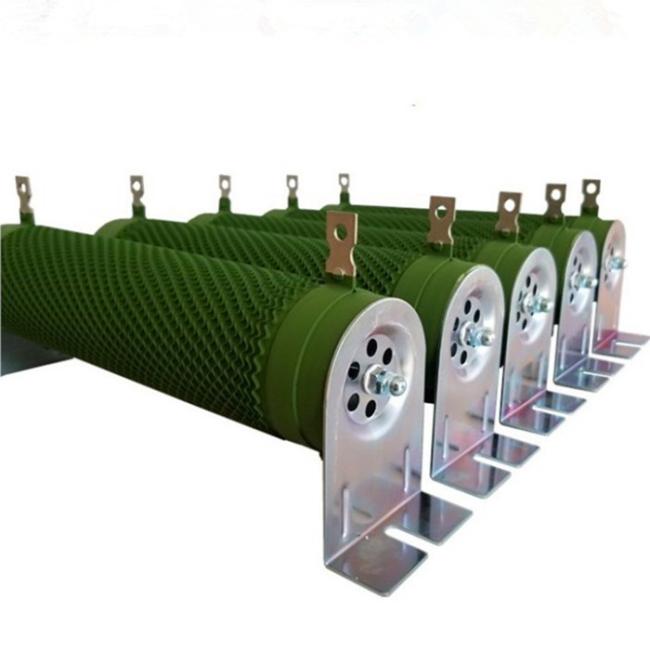

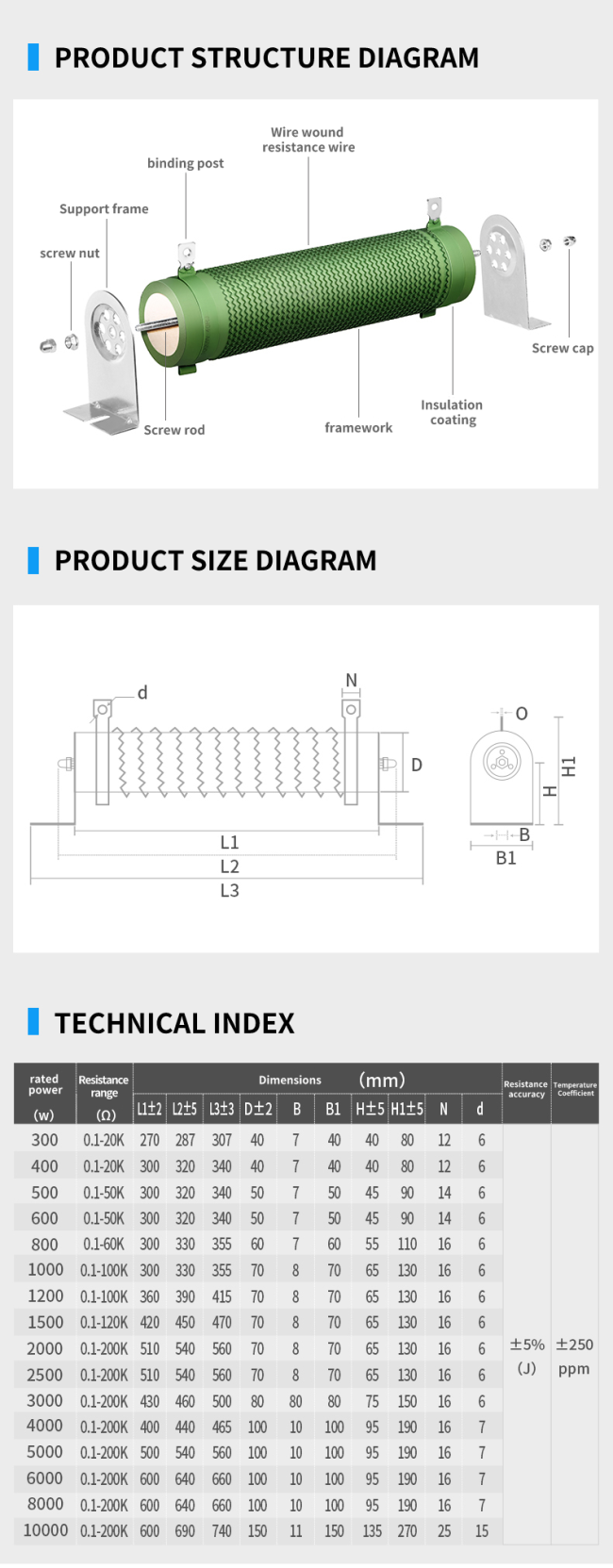

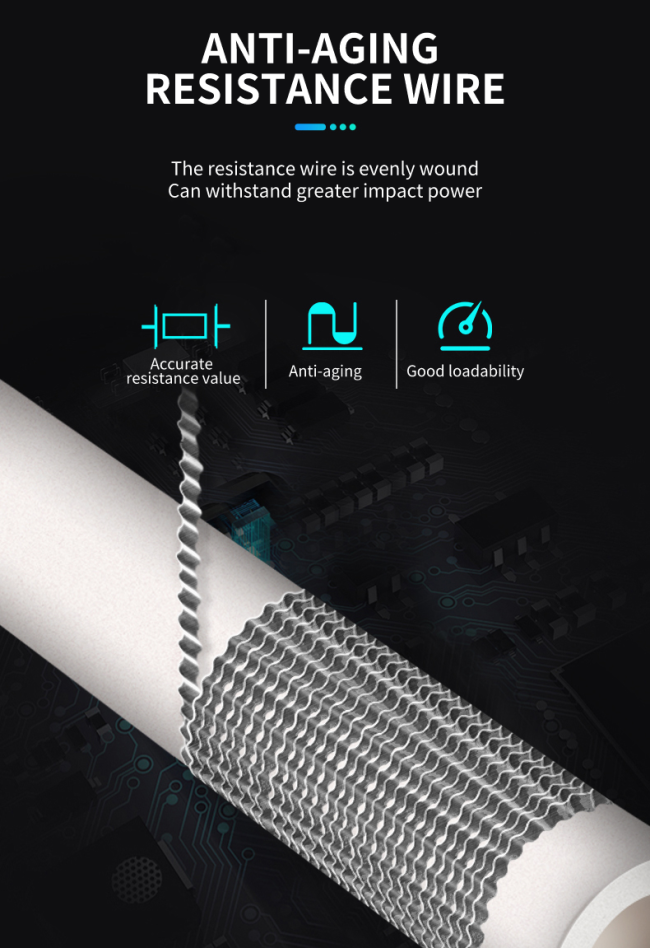

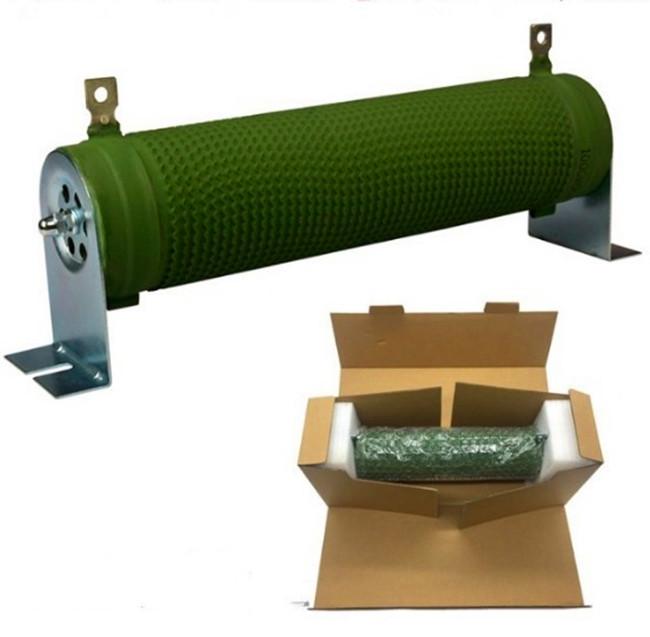

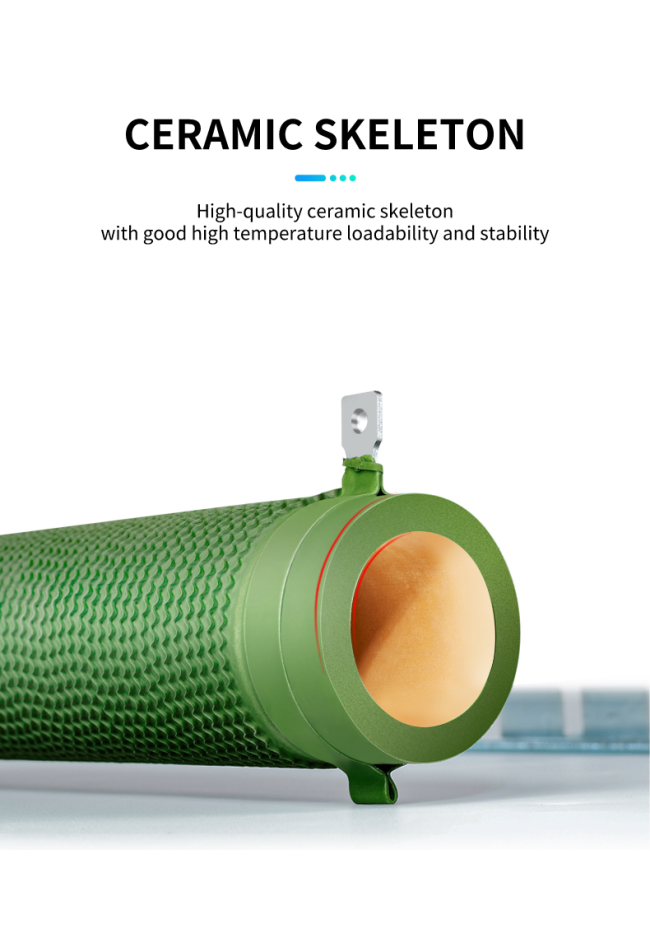

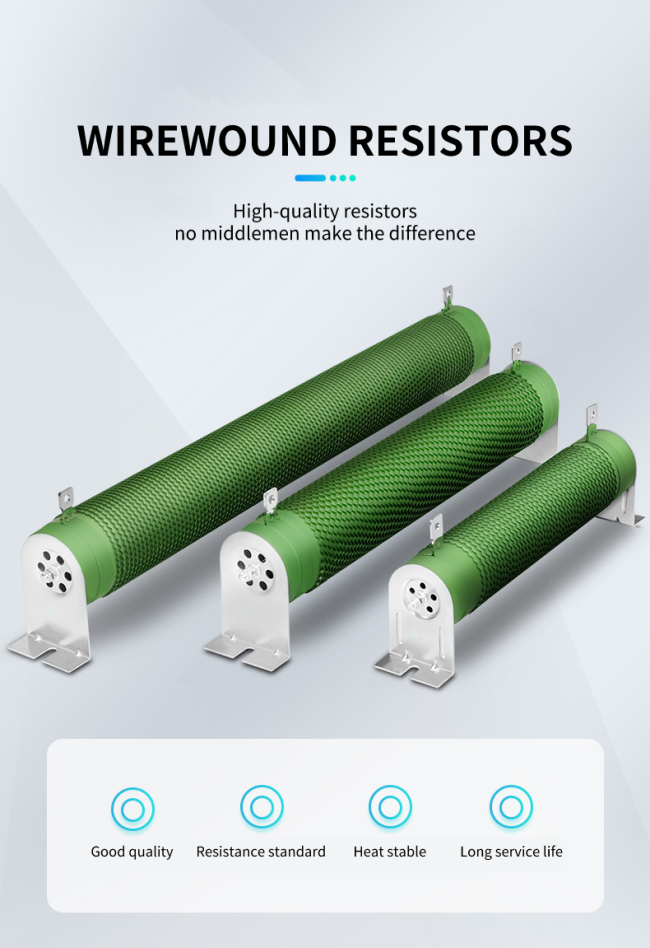

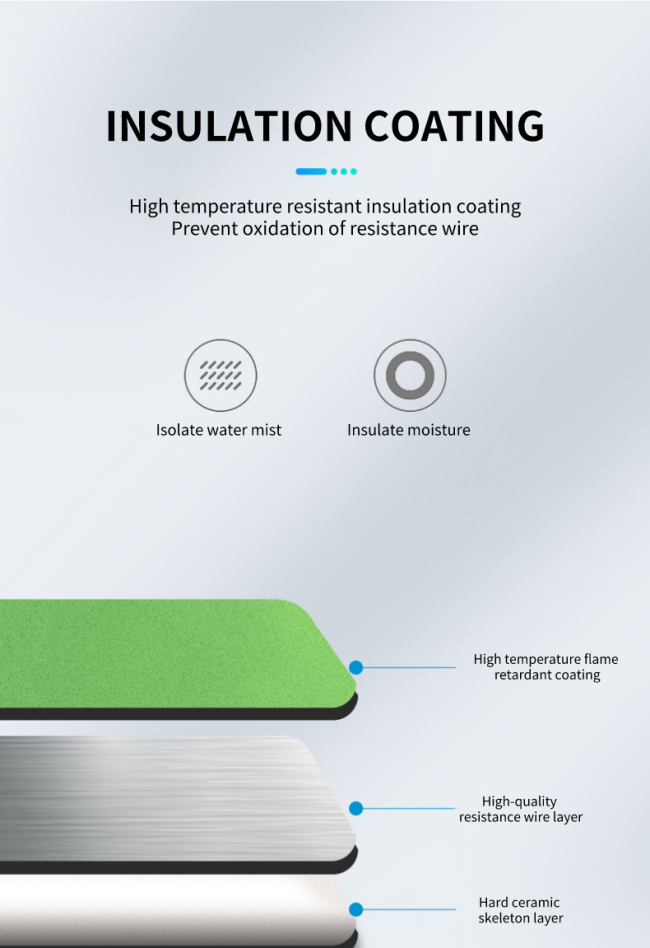

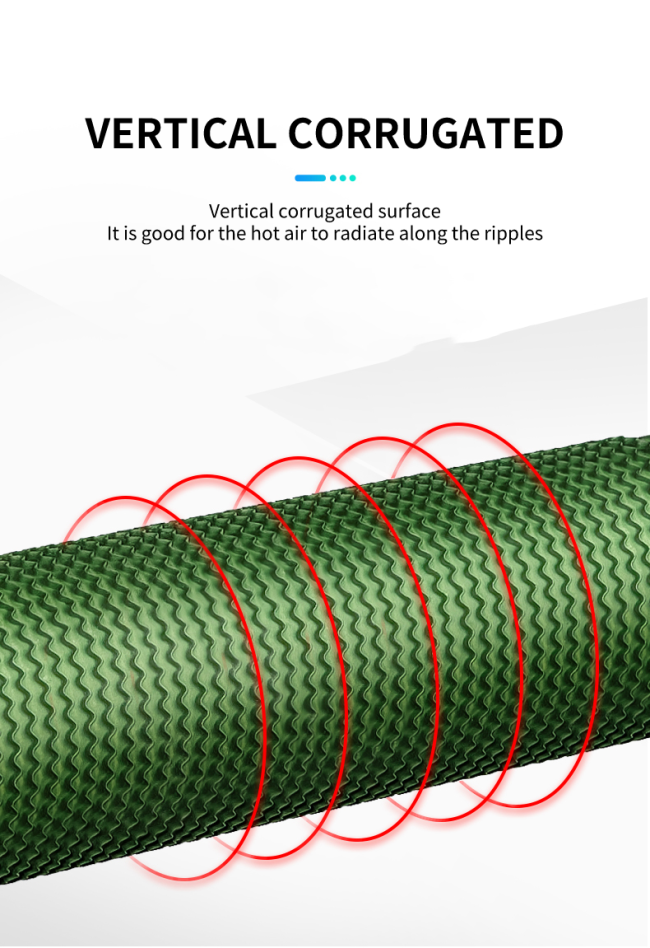

5KW High Power wirewound Braking Resistor 5000W Rated Power : 5000W Size: 500mm length & 100mm diameter Resistance value：1R 2R 3R 4R 6R.......10KR Resistance tolerance: ±1%(F), ±2%(G), ±5%(J), ±10%(K) Type : Fixed Features: 1.The surface of the resistor is coated with insulating resin paint, and the materials are all non-toxic and environmentally ROHS products 2. Adopt vertical corrugated winding, which can reduce parasitic inductance, enhance heat dissipation function,reduce volume, prolong service life, etc. 3. The resistor is fixed. Two or more terminals with good conductivity can be set We can also design and produce production that meets customer requirements according to customer needs |
you may also like

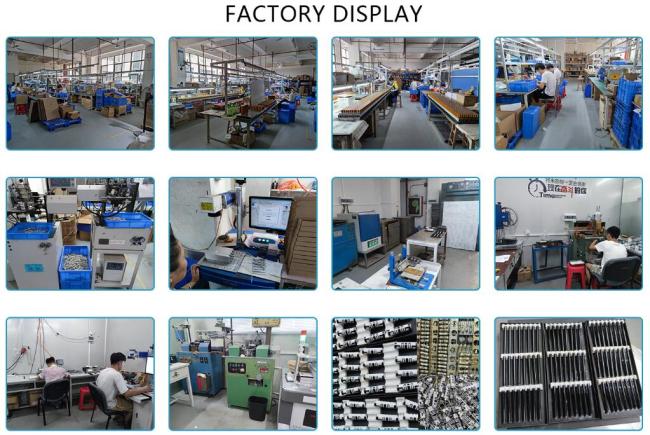

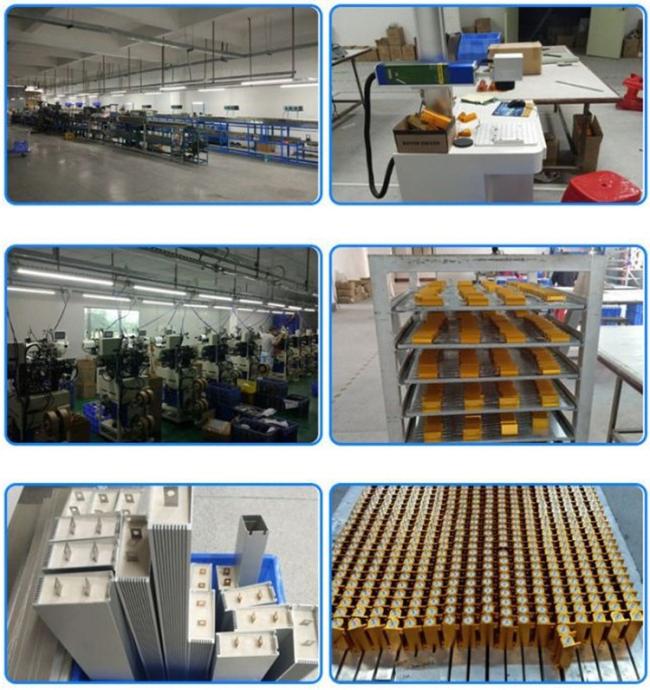

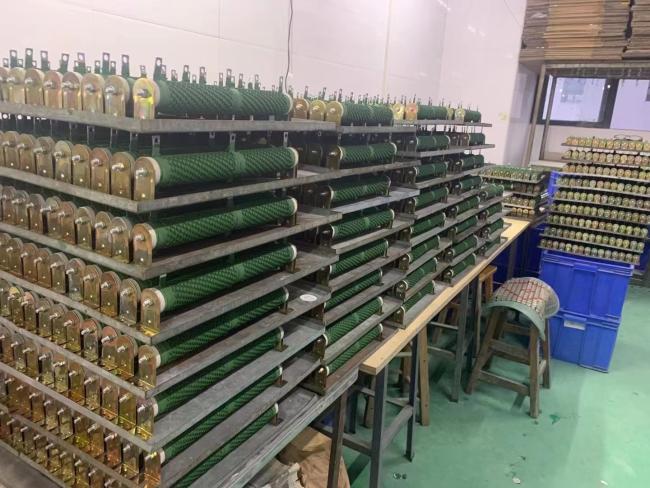

Our Factory
