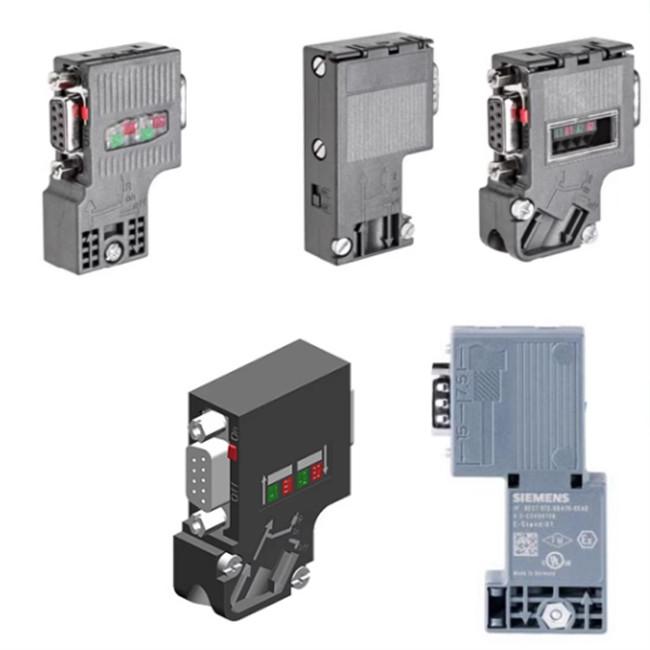

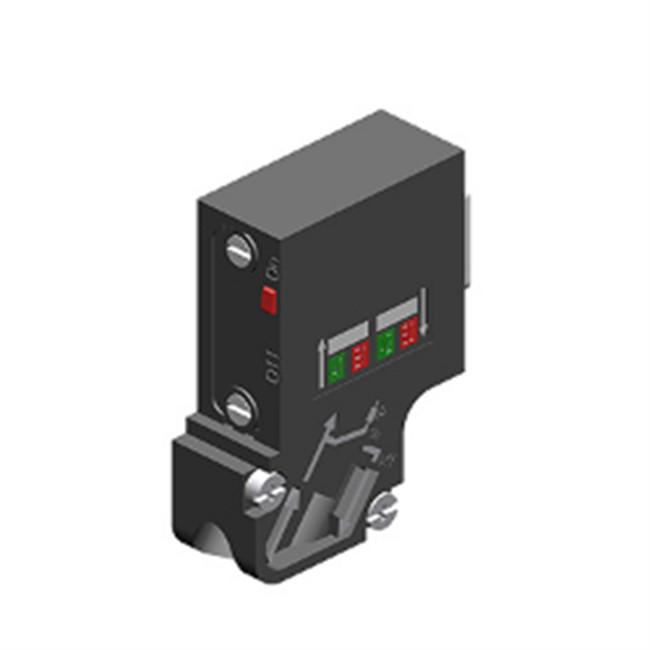

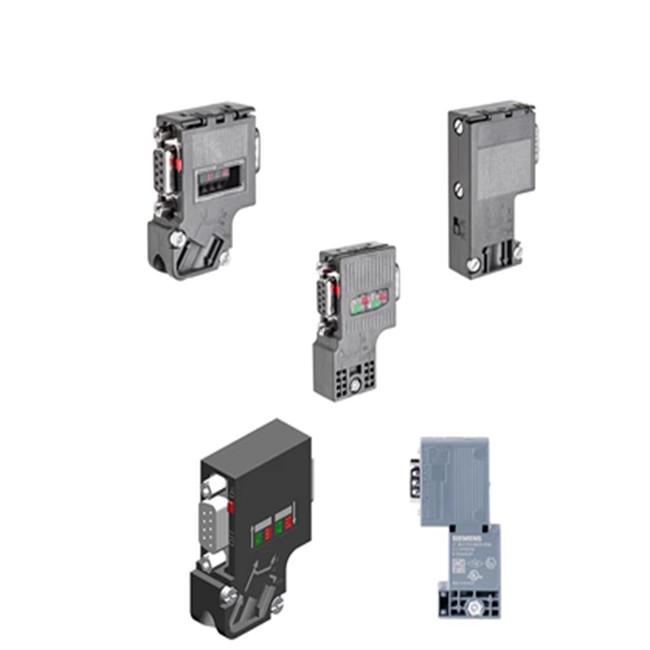

Insulated Siemens DP Connector PROFIBUS 6ES7972-0BA60-0XA0 RS485 Plug
Price:
＄60 negotiable
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
Siemens
Product Description
6ES7972-0BA60-0XA0 PROFIBUS Bus Connection Plug RS485 Plug Siemens DP Connector
SIMATIC DP, connector for PROFIBUS up to 12 MBit/s 35 degree cable outlet, insulated crimp connection Fast Connect, without PG programming device socket 15.8x 54x 39.5mm (width x height x depth)
| Applicability | To connect the PROFIBUS device to the PROFIBUS bus cable |
| Transmission rate/PROFIBUS DP | 9.6 kbit/s ... 12 Mbit/s |
| Number of PROFIBUS wires | 2 |
| During operation | -25 ... +60 °C |
| During storage and operation | -40 ... +70 °C |
| During transportation operation | -40 ... +70 °C |
| Terminal resistor specifications | Integrated resistor combination and can be connected through sliding switch |
| Structural form of locking device | Fixing screw |
