Roof top transport Refrigeration Unit For Truck, ≤8 m3 box volume EV-088
Price:
Negotiable
MOQ:
1SET
Delivery Time:
Negotiable
Brand:
Yinhuasheng/OEM
Product Description

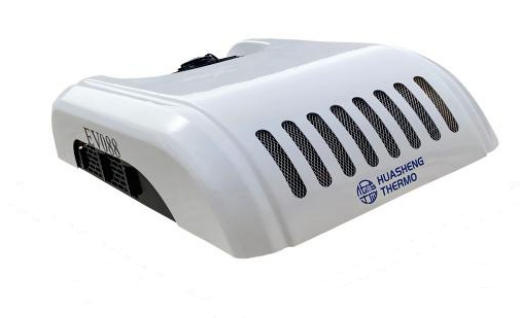

EV-088 Roof top transport Refrigeration Unit For Truck
Roof top,powered by the vehicle battery, our EV-088 unit is specially designed for NEV full electric trucks.

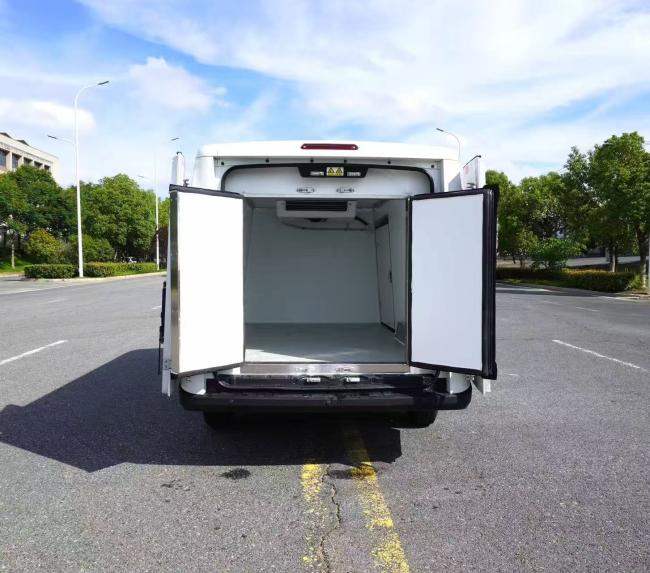

Which is widely be used for reefer truck box size of 8m³.
Yinhuasheng units will be customer's preferential choice who wants to put together durability and reliability, with low operational cost and handling charges.
Product Pictures:
Standard Features:
1.Applicable for small and medium sized new energy vehicles.
2. High grade(IP67) water-proof and insulation design, AC-DC interlock and four in one design.
3. Ultra-slim fiberglass evaporator or Al-alloy evaporator, with big air flow.
4. Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed.
5. The compressor is inbuilt inside the condenser unit, compact design.
6. Multi-functional and LCD controller, precise temperature control, fully display and easy operation, with fault codes and alarms.
7. None-interference between charging and unit running, saving charging time and extending the service life of battery.
8. HP and LP switch safety protection.
9. Standard AC220V standby for parking cooling.
Technical parameters:
| Unit Model | EV-088 | |
| Applicable Temperature(℃) | -25℃ ~ -+25℃ | |
| Box Volume (m³) | ≤8m³ | |
|
Cooling Capacity (W) |
0℃ | 2350 W |
| -18℃ | 1230 W | |
| Compressor | Model | DDH356 |
| Lubricating Oil | PAG 68 | |
| Evaporator | Material | Inner grooved copper tube |
| Number of Fans | 1 PCS | |
|
Condenser |
Material | Parallel flow condenser |
| Number of Fans | 1 PCS | |
| High Voltage | DC250V-DC450V | |
| Low Voltage Power | DC-DC | |
| Control Voltage | DC12V(9-16V) | |
| Refrigerant | R404a | |
| Refrigerant Charge | 0.8 KG | |
| Box Temperature Adjustment | Electronic digital display | |
| Safety Protect | High and low pressure switch | |
| Defrosting | Hot gas defrost automatically | |
| Weight/Dimensions | Evaporator | 13 KG |
| Condenser | ＜62 KG | |
| Evaporator | 780*580*210 | |
| Condenser | 1140*770*240 | |
| Drive Model | Full electric driven | |
