HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for Cold Chain Transport
Price:
negotiation
MOQ:
1SET
Delivery Time:
20
Brand:
Yinhuasheng/OEM
Product Description

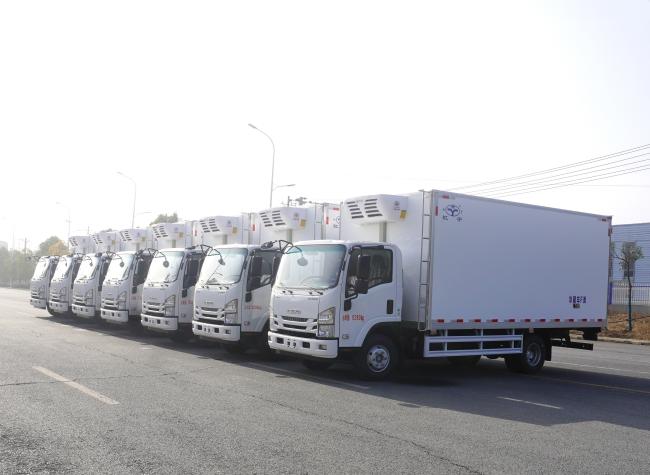

HT-500 Vehicle Refrigeration Unit For Cold Chain Transport
Product Overview
Professional refrigeration unit designed for trucks, lorries, and vans with cargo volumes up to 18m³. Ideal for cold chain transport applications requiring reliable temperature control.
Key Features
- Eco-friendly refrigerant R404A (R134a system also available)
- Corrosion resistant and high strength FRP canning material
- Aluminium fin parallel flow condenser - lightweight and compact with excellent heat exchange
- Inner grooved copper tube evaporator with large airflow and enhanced coil protection
- Strong, reliable compressor specifically designed for R404a systems
- Digital display control panel for minimal operation
- High and low pressure switch safety protection
- Large cooling capacity with reliable performance
Product Images
Technical Specifications
| Unit Model | HT-500 |
|---|---|
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤18m³ |
| Cooling Capacity | 5100 W at 0℃ 2350 W at -18℃ |
| Compressor | Model: GY16 Displacement: 163 CC Lubricating Oil: PAG 68 |
| Evaporator | Material: Inner grooved copper tube Number of Fans: 2 PCS |
| Condenser | Material: Parallel flow condenser Number of Fans: 2 PCS |
| Refrigerant | R404a |
| Refrigerant Charge | 1.4KG |
| Temperature Control | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting | Hot gas defrost automatically |
| Weight & Dimensions | Evaporator: 26 KG (1010×640×250 mm) Condenser: 35 KG (1170×520×415 mm) |
| Drive Model | Non-independent engine driven |
Important Notes
- The applicable compartment volume is for reference only. Actual performance depends on compartment volume, insulation quality, environmental temperature, and transported goods.
- Compressor operates at 2000 rpm with selectable 12V/24V voltage options.
