EV-388 New Energy Reefer Truck Refrigeration Unit with IP67 Waterproof R404a Refrigerant and Compact Design
Price:
negotiation
MOQ:
1PCS
Delivery Time:
20
Brand:
YINHUASHENG
Product Description

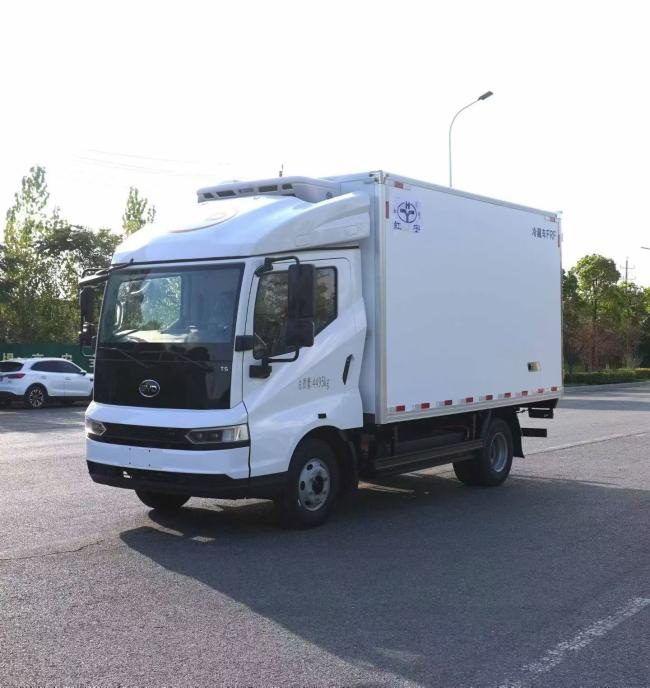

EV-388 New Energy Reefer Truck Refrigeration Unit
Powered by the vehicle battery, our EV-388 unit is specially designed for new energy vehicles (NEV) full electric trucks. It is widely used for reefer truck boxes with a volume of up to 8m³. Yinhuasheng EV-388 will be the preferred choice for customers who pursue durability and reliability, along with low operational costs and handling fees.
Standard Features
- Applicable for small and medium-sized new energy vehicles (NEVs)
- High-grade IP67 waterproof and insulation design, equipped with AC-DC interlock and four-in-one integrated design for enhanced safety and usability
- Ultra-slim fiberglass evaporator or aluminum alloy evaporator, featuring large air flow to ensure efficient and uniform cooling
- Fully enclosed electric compressor: high efficiency, eco-friendly, and not affected by vehicle speed, ensuring stable cooling performance at all times
- The compressor is built into the condenser unit, adopting a compact design to save installation space on the truck
- Multi-functional LCD controller with precise temperature control, full data display, and easy operation. It is equipped with fault codes and alarm functions for timely troubleshooting
- No interference between vehicle charging and unit operation, effectively saving charging time and extending the service life of the vehicle battery
- High Pressure (HP) and Low Pressure (LP) switch safety protection, preventing equipment damage due to abnormal pressure
- Standard AC220V standby function for parking cooling, ensuring the cargo stays at the desired temperature even when the vehicle is not running
Product Images
Technical Parameters
| Item | Specification |
|---|---|
| Unit Model | EV-388 |
| Applicable Temperature (℃) | -20℃ ~ +20℃ |
| Box Volume (m³) | ≤12m³ |
| Cooling Capacity (W) | 3010 W (at 0℃) 1710 W (at -18℃) |
| Compressor | Model:/ Lubricating Oil: PAG 68 |
| Evaporator | Material: Inner grooved copper tube Number of Fans: 2 PCS |
| Condenser | Material: Parallel flow condenser Number of Fans: 2PCS |
| High Voltage | DC250V-DC450V/DC380V-DC750V |
| Low Voltage Power | DC-DC |
| Control Voltage | DC12V (9-16V) |
| Refrigerant | R404a |
| Refrigerant Charge | 1.3KG |
| Box Temperature Adjustment | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting | Hot gas defrost automatically |
| Weight | Evaporator: 17 KG Condenser: ＜58KG |
| Dimensions | Evaporator: 1000*580*210 (mm) Condenser: 1150*850*280 (mm) |
| Drive Model | Full electric driven |
Product Advantages
- NEV-Specific Design: Powered by the vehicle battery, perfectly matched with full electric trucks, no need for additional power supply, energy-saving and environmentally friendly
- Stable Performance: Fully enclosed electric compressor is not affected by vehicle speed, ensuring consistent cooling effect even during vehicle acceleration or deceleration
- Durable & Reliable: IP67 waterproof and insulation design, high and low pressure safety protection, and high-quality components ensure long service life and low failure rate
- Cost-Effective: Low operational costs and handling fees, combined with energy-saving design, helping customers reduce long-term use costs
- User-Friendly: Compact design, easy installation; multi-functional LCD controller, simple operation, and fault alarm function for convenient maintenance
Installation Drawing
