24mm Brushless DC Gear Motor High Torque Low Noise 12V 24V Planetary Gear Motor
Diameter 24mm 12/24v Dc Brushless Gear Motor high torque long life time low noise Planetary Gear Motors
Motor Type: DC Brushless gear motor
Item NO. DPG24-2418
Voltage 6V~24V
Speed 15~500RPM
Working Current 5A Max
Body Diameter:24MM
Quick Detail:
· Metal housing
· DC6V~12V Voltage options
· Max torque 3Nm
· 15~300rpm high speed
· Connector type customized
· Long lifetime
· CE, ROHS compliant
· 1 Year Warranty
Description:
Small size 0.5Nm torque 24 mm 6V dc gear motor brushless DC motor
Small size dc gear motor with low speed and big torque
24mm gear motor provide 0.5Nm torque and more reliable
Suitable to small diameter. Low noise and big torque application
Reduction ratio: 4.14.19.27.51.71.100.139.189.264.369.516.720
Specification:
| Item | Dc brushless gear motor |
| Size | Diameter24mm |
| Working Voltage | 12v |
| Speed | 50RPM |
| torque | 1.5kg.cm |
| Working Current | 85mA Max |
| Typical Current | 62mA |
| Shaft diameter | 4mm |
| Shaft length | customized |
| Lifetime | 20000hours |
| Certificate | CE,ROHS |

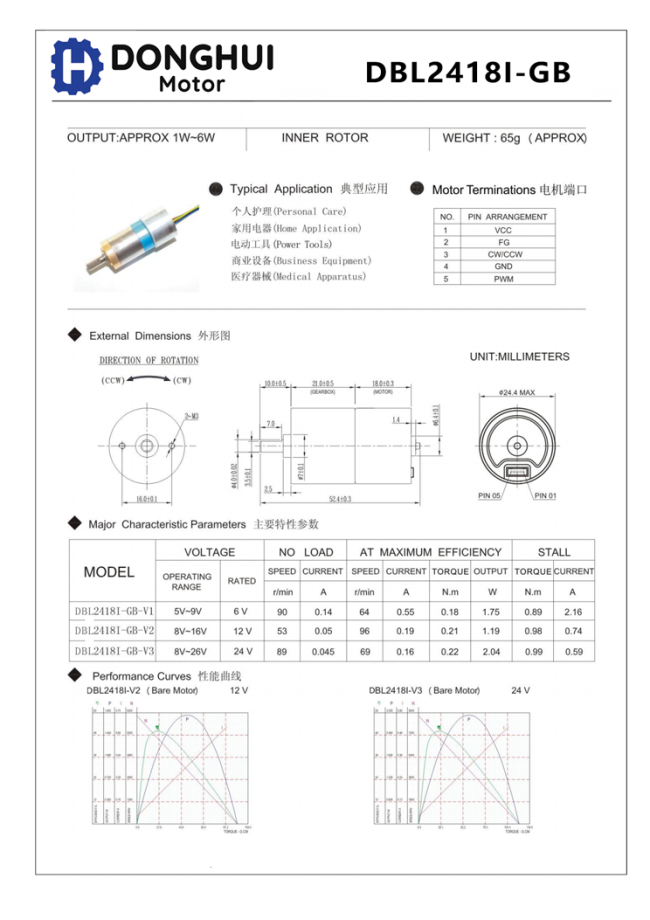

Typical Specification:
The dimension of the motor can be customized
Small size 0.5Nm torque 24 mm 6V dc gear motor brushless DC motor
Shaft, encoder, and gearbox can be customized
Typical application
Packing and shipping
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →
cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund
when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you
need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
