High Torque Brushless Electric DC Gear Motor 3640 12V 24V With Planetary Gearbox
Dia 36mm dc brushless Gear DC Electric 3640 Brushless Motor 12/24V With planetary Gearbox high torque low noise
Motor Type: DC Brushless motor
Item NO. DBL3640
Voltage 6V~24V
Speed 2500~10000RPM
Working Current 5A Max
Body Diameter:36MM
Planetary gearbox
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
4.The price is a little expensive.
series Gearmotors consist of 36mm planetary gearboxes and 36mm BLDC motors.
The planetary gear motors are equipped with a hall sensor type brushless DC motor to increase the torque and lower the output speed to meet your application or project demands.Twirl offers rushless DC Gearmotors with hall only feedback or with a control board that is fully integrated to the internal motor.When mated to our planetary gearbox, this brushless gearmotor offers extremely long life and high torque in a compact size.
Specification:
| Item | Dc brushless gear motor |
| Size | Diameter36mm |
| Working Voltage | 6V~12V |
| Speed | 15~300RPM |
| Torque | 0.1-5kg.cm |
| Working Current | 85mA Max |
| Typical Current | 62mA |
| Lifetime | 10000hours constant run |
| Certificate | CE,ROHS |

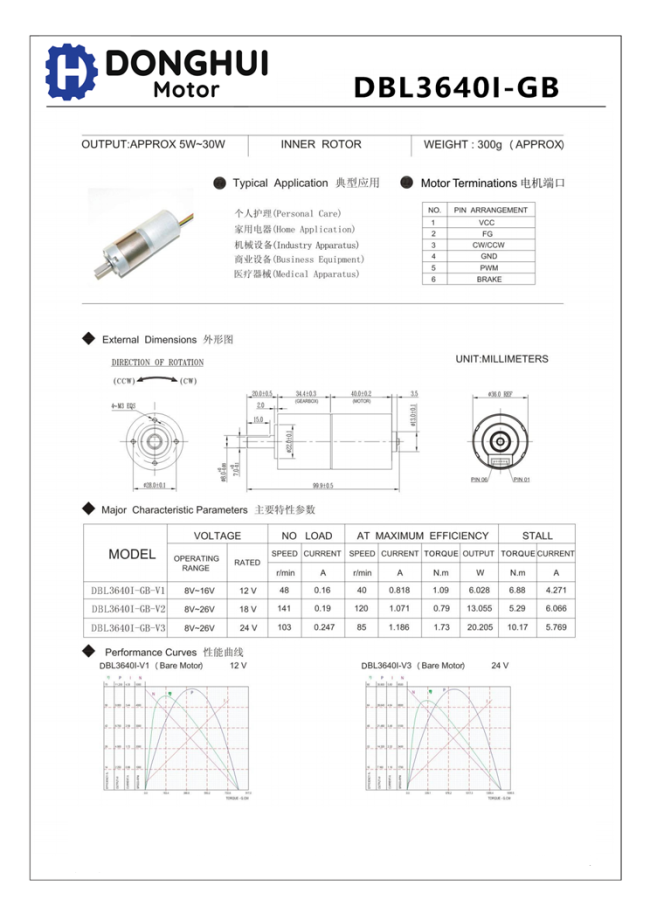

Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →
cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund
when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you
need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
