Brush Small DC Gear Motor DC 3V 6V 12V 24V Diameter 13mm For Door Lock
Diameter 13mm DC Small Gear Motor DC3V 6V 12V 24V with 030 for Door Lock beauty product
Motor Type: DC Brush gear motor
Item NO. DGA13-030
Voltage 1.5V~24V
Speed 15~3000RPM
Working Current 2A Max
Body Diameter:13MM
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
Description:
Voltage:DC Input 1.5V,3v,4.5v, 5v,6v,7.2v,9v,12v (Can be Customized)
Power:(Can be Customized)
Speed:Variable speed from 0.5-3000rpm (Can be Customized)
Torque:Up to 2kgf.cm rated torque(Can be Customized)
Shaft:shaft Dia: 3mm ,Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)

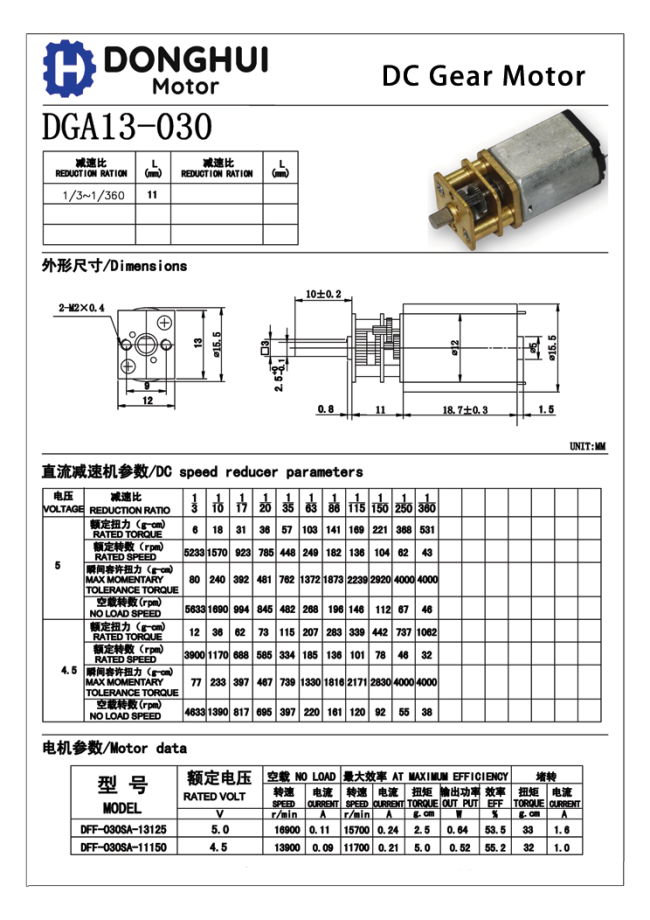

Specification:
| Item | Dc brush gear motor DGA13-030 |
| Size | Diameter13mm |
| Working Voltage | 4.5v |
| Speed | 75RPM |
| Torque | 0.8kg,cm |
| Working Current | 45mA Max |
| Typical Current | 50mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →
cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund
when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you
need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
