Metal Random Packing Super Raschig Ring For Mass Transfer 20mm 25mm 70mm
Metal Random Packing Super Raschig Ring For Mass Transfer 20mm, 25mm, 70mm
Product description
The design of the Super Raschig Ring offers an optimal solution to industry's demands for a modern heavy-duty packing. Unlike previous packing shapes, the Super Raschig Ring avoids the droplet formation which is such a frequent interference accompanying large gas loads.
The Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal pickings by over 10%.
Advantages:
high capacity
lower pressure drop
better transfer
Application:
Absorption column and desortion column.
Rectification column.
Technical data
| Size | Material |
Nominal Diameter (mm) |
Surface Area (m2/m3) |
Void (%) |
| Super raschig ring Nr. 0.5 | Metal | Φ20 | 250 | 97 |
| Super raschig ring Nr. 0.7 | Metal | Φ25 | 180 | 98 |
| Super raschig ring Nr. 3.0 | Metal | Φ70 | 80 | 98 |
The above data is reference to material stainless steel (AISI304) in the material thickness shown.
Material available:
carbon steel, stainless steel including 304, 304L, 410,316, 316L.
Package info
| package | bags | loaded volumn | |
| 20GP container | jumbo bag | 20 | 20m3 |
| 40GP container | jumbo bag | 44 | 44m3 |
| 40HQ container | jumbo bag | 44 | 50m3 |
One jumbo bag can load 1-1.5m3 metal pall ring.

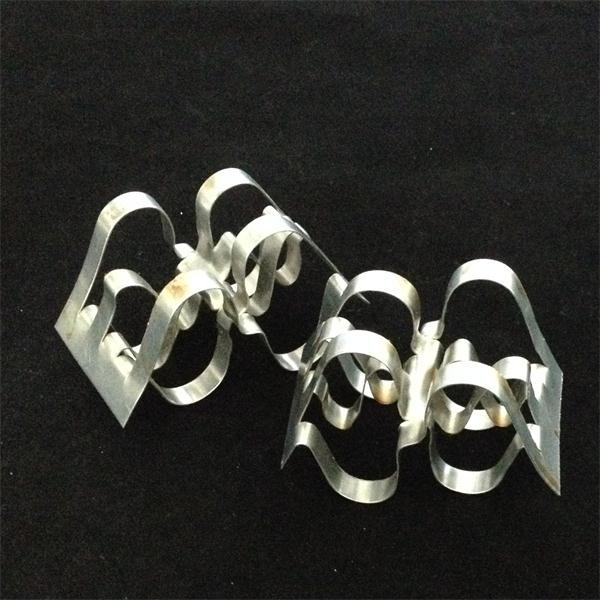

Product photo
Production and shipment
Other metal random packing products
Pall ring, Raschig ring, Super raschig ring, Cascade ring, Intalox saddle ring, IMTP packing, Conjugate ring, VSP ring, metal improved inner arc ring
