Plastic Very Special Packing Ring VSP Ring 50mm For Environmental Protection Industry
Plastic Very Special Packing Ring VSP Ring 50mm For Environmental Protection Industry
Product description
Plastic vsp ring High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
Widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
Physical & chemical properties of plastic random packing
| Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 |
0.93-0.94 |
1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Main technical index:
| Model | Plastic VSP | |||
| Material | PP,RPP,PE,PVC,CPVC,PVDF,etc. | |||
| Size | Specific Area | Void ratio | Bulk density | Specification of PP plastic VSP |
| (mm) | m2/m3 | (%) | kg/m3 | |
| 25 | 185 | 93 | 60 | |
| 50 | 100 | 95 | 45 | |
| 90 | 78 | 97 | 30 | |
Note: The above data are reference to material PP.
Package info
| package | volume | volume/bag | |
| 20GP container | woven bag | 25-28m3 | 0.1-0.3m3 |
| 40GP container | woven bag | 52-55m3 | 0.1-0.3m3 |
| 40HQ container | woven bag | 60-65m3 | 0.1-0.3m3 |

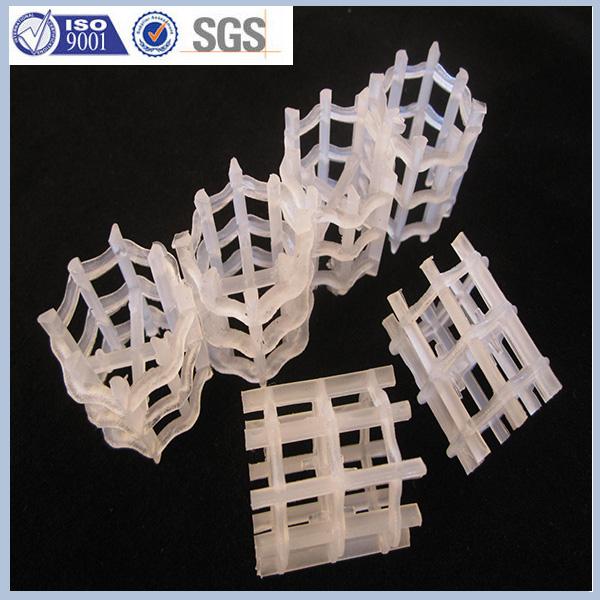

Product photo
Plastic Material: 100% virgin PP granules
Production and shipment
Other plastic random packing products
Pall ring, raschig ring, tri-pack, saddle ring, super intalox saddle ring, polyhedral hollow ball,
hollow ball, cascade ring, tellerette ring, vsp ring, snowflake ring, lanpac packing
